系統 - OpenBMC - 如何使用QEMU跑OpenBMC

---

參考資訊：
https://hackmd.io/@a0979552111/BykOU2CDJg
https://jia.je/system/2023/08/11/openbmc-qemu/#%E8%BF%87%E7%A8%8B
https://jenkins.openbmc.org/job/latest-master/lastSuccessfulBuild/label=docker-builder,target=romulus/artifact/openbmc/build/tmp/deploy/images/romulus/

安裝步驟：

$ cd
$ wget https://github.com/steward-fu/website/releases/download/openbmc/obmc-phosphor-image-romulus.static.mtd
$ wget https://github.com/steward-fu/website/releases/download/openbmc/qemu-system-arm
$ chmod a+x qemu-system-arm
$ ./qemu-system-arm \
    -m 512 \
    -M romulus-bmc \
    -nographic \
    -drive file=obmc-phosphor-image-romulus.static.mtd,format=raw,if=mtd \
    -net nic \
    -net user,hostfwd=tcp::2222-:22,hostfwd=tcp::2443-:443,hostfwd=udp::2623-:623

Phosphor OpenBMC (Phosphor OpenBMC Project Reference Distro) nodistro.0 romulus ttyS4
romulus login:

P.S. root/0penBmc，Ctrl+A=>X可以結束QEMU執行

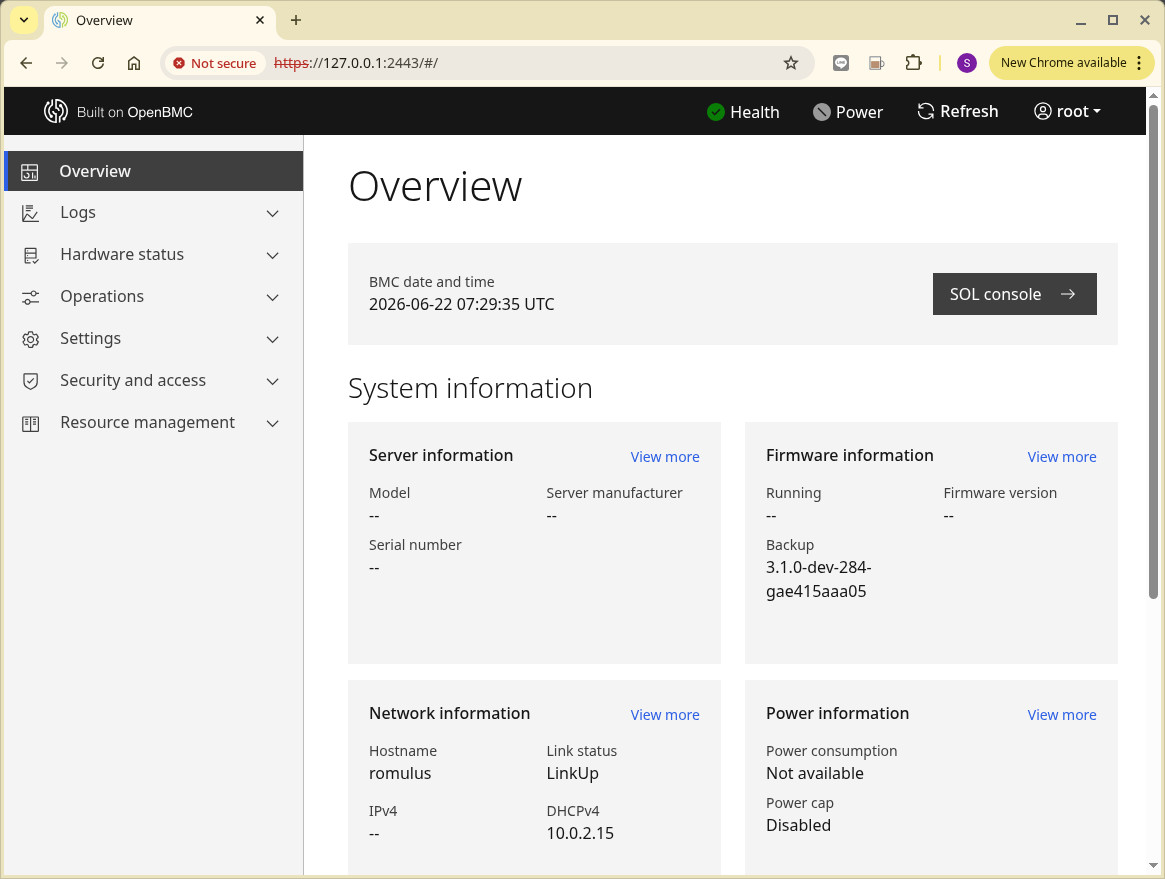

bmcweb


redfish

$ curl -k https://127.0.0.1:2443/redfish/v1/
{
  "@odata.id": "/redfish/v1",
  "@odata.type": "#ServiceRoot.v1_15_0.ServiceRoot",
  "AccountService": {
    "@odata.id": "/redfish/v1/AccountService"
  },
  "Cables": {
    "@odata.id": "/redfish/v1/Cables"
  },
  "CertificateService": {
    "@odata.id": "/redfish/v1/CertificateService"
  },
  "Chassis": {
    "@odata.id": "/redfish/v1/Chassis"
  },
  "EventService": {
    "@odata.id": "/redfish/v1/EventService"
  },
  "Fabrics": {
    "@odata.id": "/redfish/v1/Fabrics"
  },
  "Id": "RootService",
  "JsonSchemas": {
    "@odata.id": "/redfish/v1/JsonSchemas"
  },
  "Links": {
    "ManagerProvidingService": {
      "@odata.id": "/redfish/v1/Managers/bmc"
    },
    "Sessions": {
      "@odata.id": "/redfish/v1/SessionService/Sessions"
    }
  },
  "Managers": {
    "@odata.id": "/redfish/v1/Managers"
  },
  "Name": "Root Service",
  "ProtocolFeaturesSupported": {
    "DeepOperations": {
      "DeepPATCH": false,
      "DeepPOST": false
    },
    "ExcerptQuery": false,
    "ExpandQuery": {
      "ExpandAll": false,
      "Levels": false,
      "Links": false,
      "NoLinks": false
    },
    "FilterQuery": false,
    "OnlyMemberQuery": true,
    "SelectQuery": true
  },
  "RedfishVersion": "1.17.0",
  "Registries": {
    "@odata.id": "/redfish/v1/Registries"
  },
  "SessionService": {
    "@odata.id": "/redfish/v1/SessionService"
  },
  "Systems": {
    "@odata.id": "/redfish/v1/Systems"
  },
  "Tasks": {
    "@odata.id": "/redfish/v1/TaskService"
  },
  "TelemetryService": {
    "@odata.id": "/redfish/v1/TelemetryService"
  },
  "UUID": "4bc37975-be4d-4d72-a57f-1400930a3d3a",
  "UpdateService": {
    "@odata.id": "/redfish/v1/UpdateService"
  }
}

ssh

$ ssh root@localhost -p 2222
root@romulus:~#
