手機 - Motorola XT897 - 終級改造

---

參考資訊：
https://dimi.tw/store/product/rode-sc6

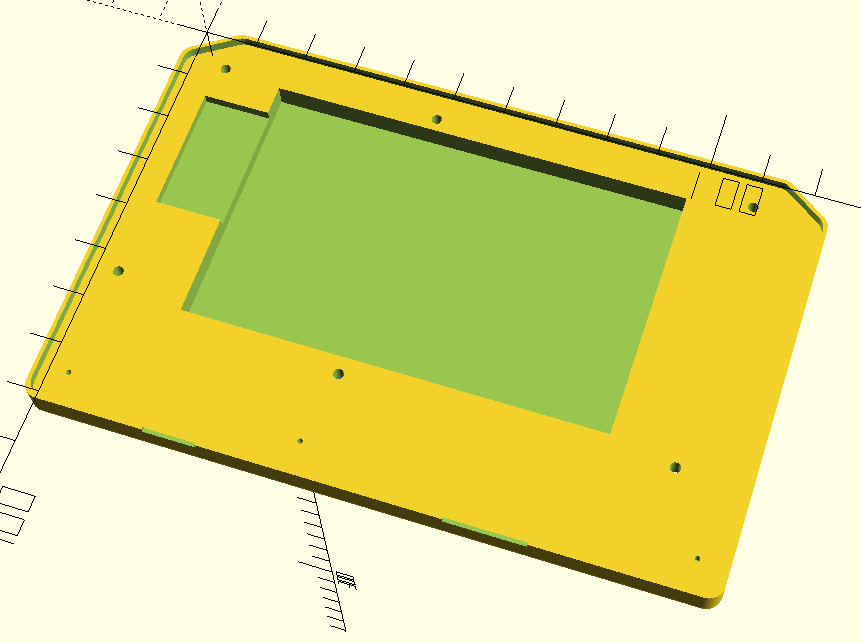

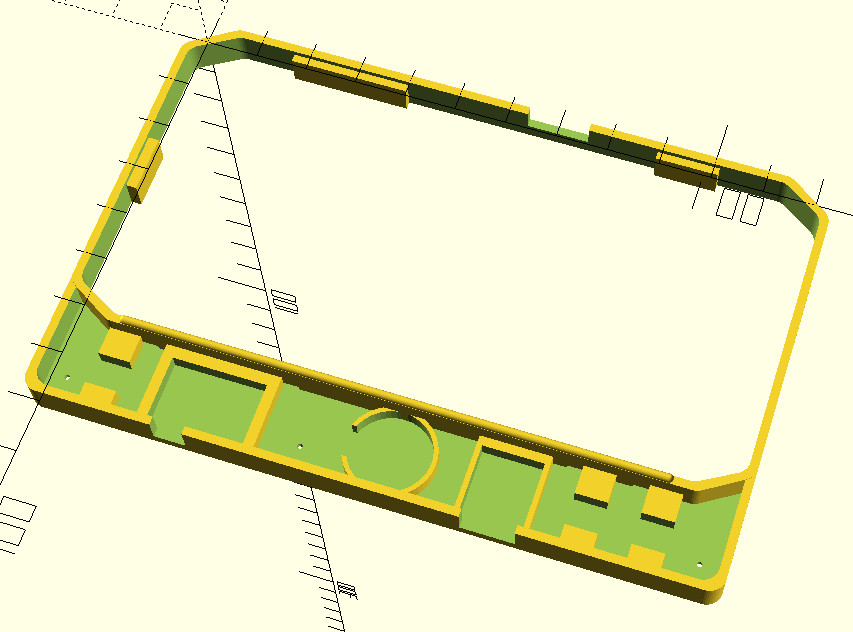

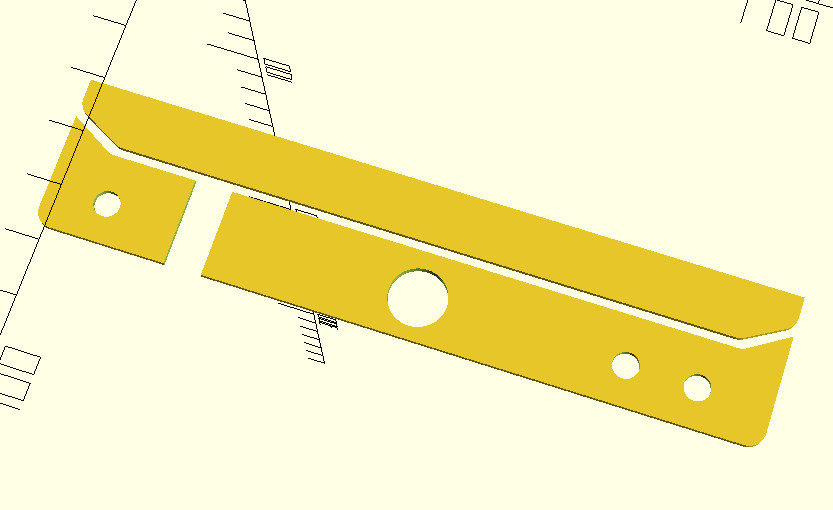

OpenSCAD

$fn  = 50;

module frame(off) {
    hull() {
        c = 3;
        h = 7;

        // left-bottom
        translate([0 - off, 4 - off / 2, 0]) cylinder(h, c, c);
        translate([6.5 - off / 2, 0 - off, 0]) cylinder(h, c, c);

        // right-bottom
        translate([112.5 + off / 2, 0 - off, 0]) cylinder(h, c, c);
        translate([118.5 + off, 4 - off / 2, 0]) cylinder(h, c, c);

        // left-top
        translate([6.5 - off / 2, 57 + off, 0]) cylinder(h, c, c);
        translate([0 - off, 53.5 + off / 2, 0]) cylinder(h, c, c);

        // right-top
        translate([118.5 + off, 53.5 + off / 2, 0]) cylinder(h, c, c);
        translate([112.5 + off / 2, 57 + off, 0]) cylinder(h, c, c);
    }
}

module earphone() {
    rotate([180, 0, 90]) difference() {
        translate([0, 0, 0]) cube([16, 22, 5]);
        translate([2.3, 2, 1]) cube([13, 18, 10]);
    }
}

module typec() {
    rotate([180, 0, 90]) difference() {
        translate([0, 0, 0]) cube([16.5, 13.5, 5]);
        translate([1.8, 1, 1]) cube([13.5, 11.5, 10]);
    }
}

module btn() {
    rotate([0, 180, 0]) difference() {
        translate([0, 0, 0]) cube([6, 16.5, 5]);
        translate([0, 6, 1]) cube([6, 6, 5]);
    }
}

module speaker() {
    difference() {
        translate([0, 0, 4]) cylinder(5, 8.5, 8.5);
        translate([0, 0, 3]) cylinder(5, 7.65, 7.65);
    }
}

module aux() {
    x = -1.6;
    y = 53;
    h = 21.6 + 0.8;
    w = 120.1;

    difference() {
        hull() {
            translate([x, y, 0.1]) cylinder(8.5, 3, 3);
            translate([w, y, 0.1]) cylinder(8.5, 3, 3);
            translate([x, y + h, 0.1]) cylinder(8.5, 3, 3);
            translate([w, y + h, 0.1]) cylinder(8.5, 3, 3);
        }

        translate([0, 0, -1]) hull() {
            off = 1.6;
            translate([x + off, y + off, -off]) cylinder(8.5, 3, 3);
            translate([w - off, y + off, -off]) cylinder(8.5, 3, 3);
            translate([x + off, y + h - off, -off]) cylinder(8.5, 3, 3);
            translate([w - off, y + h - off, -off]) cylinder(8.5, 3, 3);
        }

        translate([-5, 45, -1]) cube([130, 9, 10]);
        translate([3, 50, -1]) cube([110, 10, 10]);

        hull() {
            c = 3;
            h = 7;
            off = 0;

            translate([6.5 - off / 2, 57 + off, 0]) cylinder(h, c, c);
            translate([0 - off, 53.5 + off / 2, 0]) cylinder(h, c, c);
            translate([118.5 + off, 53.5 + off / 2, 0]) cylinder(h, c, c);
            translate([112.5 + off / 2, 57 + off, 0]) cylinder(h, c, c);
        }
    }
}

module back(h, off, extra) {
    c0 = 3;
    c1 = 3;

    translate([118.5, 0, 0]) rotate([0, 180, 0]) difference() {
        hull() {
            translate([0 - off, 4 - off / 2, 0]) cylinder(h, c0, c0);
            translate([6 - off / 2, 0 - off, 0]) cylinder(h, c0, c0);
            translate([112 + off / 2, 0 - off, 0]) cylinder(h, c0, c0);
            translate([118.5 + off, 4 - off / 2, 0]) cylinder(h, c0, c0);
            translate([0 - off, (74.4 + off / 2) + extra, 0]) cylinder(h, c0, c0);
            translate([118.5 + off, (74.4 + off / 2) + extra, 0]) cylinder(h, c0, c0);

            translate([0 - off, 4 - off / 2, 0]) sphere(c1);
            translate([6 - off / 2, 0 - off, 0]) sphere(c1);
            translate([112 + off / 2, 0 - off, 0]) sphere(c1);
            translate([118.5 + off, 4 - off / 2, 0]) sphere(c1);
            translate([0 - off, (74.4 + off / 2) + extra, 0]) sphere(c1);
            translate([118.5 + off, (74.4 + off / 2) + extra, 0]) sphere(c1);
        }
    }
}

module case(ch, cw, ce) {
    difference() {
        h = 7;

        union() {
            holder_z = 1;
            holder_h = h - holder_z;

            difference() {
                union() {
                    difference() {
                        frame(1.6);
                        frame(0);
                    }

                    translate([0, 0, 11]) {
                        back(ch, cw, ce);
                    }

                    // keyboard holder
                    translate([8, 60.8, -0.3]) hull() {
                        translate([0, 0, 0]) sphere(0.8);
                        translate([101, 0, 0]) sphere(0.8);
                    }
                }
                translate([8, 59, -0.3]) cube([4, 2, 5]);
                translate([12, 58.5, -0.3]) cube([88, 2, 5]);
                translate([98, 59, -0.3]) cube([5, 2, 5]);

                // sdcard
                translate([63.5, -6, 0]) cube([12, 5, 4]);

                // wires
                translate([11, 58, 5]) cube([3, 6, 2]);
                translate([38, 58, 5]) cube([3, 6, 2]);
                translate([91, 58, 5]) cube([3, 6, 2]);
                translate([103, 58, 5]) cube([3, 6, 2]);
            }

            // holder
            translate([-3, 23, holder_z]) cube([2, 11, holder_h]);
            translate([16.5, -3, holder_z]) cube([23, 1.5, holder_h]);
            translate([89, -3, holder_z]) cube([12, 1.5, holder_h]);

            difference() {
                translate([0, 0, h - 0.1]) frame(1.6);
                translate([-10, -10, h + 1.6]) cube([200, 200, 10]);

                // wires - battery
                translate([80, 54, -2]) cube([26, 10, 10]);
                translate([11, 54, -2]) cube([30, 10, 10]);
            }

            difference() {
                union() {
                    aux();
                    translate([11, 61, 8]) btn();
                    translate([16, 61.5, 8]) earphone();
                    translate([75, 61.5, 8]) typec();
                    translate([100, 61, 8]) btn();
                    translate([112, 61, 8]) btn();
                    translate([127 / 2 - 2.5, 69.2, -1]) speaker();
                }

                // earphone
                translate([20, 75, -5]) cube([6, 6, 10]);

                // speaker
                translate([45, 66.5, -4.1]) cube([10, 6, 10]);

                // typec
                translate([76.75, 75, -5]) cube([10, 6, 10]);
            }
        }

        // battery
        translate([15, 3, 0]) cube([82, 51, 12.8]);
        translate([2, 9, 0]) cube([15, 25, 10]);

        // screw
        c0 = 1;
        h0 = 50;
        z0 = -20;
        translate([3.5, 2, z0]) cylinder(h0, c0, c0);
        translate([46.5, 0.5, z0]) cylinder(h0, c0, c0);
        translate([109.5, 1, z0]) cylinder(h0, c0, c0);
        //translate([1, 37.3, z0]) cylinder(h0, c0, c0);
        //translate([115, 23, z0]) cylinder(h0, c0, c0);
        translate([1, 50, z0]) cylinder(h0, c0, c0);
        translate([47, 57.5, z0]) cylinder(h0, c0, c0);
        translate([109.8, 56.7, z0]) cylinder(h0, c0, c0);

        // screw
        c1 = 1.8;
        h1 = 20;
        z1 = 11;
        translate([3.5, 2, z1]) cylinder(h1, c1, c1);
        translate([46.5, 0.5, z1]) cylinder(h1, c1, c1);
        translate([109.5, 1, z1]) cylinder(h1, c1, c1);
        //translate([1, 37.3, z1]) cylinder(h1, c1, c1);
        //translate([115, 23, z1]) cylinder(h1, c1, c1);
        translate([1, 50, z1]) cylinder(h1, c1, c1);
        translate([47, 57.5, z1]) cylinder(h1, c1, c1);
        translate([109.8, 56.7, z1]) cylinder(h1, c1, c1);
    }
}

module upper() {
    difference() {
        case(3, 1, 0);
        translate([-10, -10, 6.9]) cube([200, 200, 50]);

        // screw
        translate([0.5, 72, -2]) cylinder(10, 0.5, 0.5);
        translate([45, 72, -2]) cylinder(10, 0.5, 0.5);
        translate([118, 72, -2]) cylinder(10, 0.5, 0.5);
    }
}

module lower() {
    difference() {
        case(5, 2.4, 0.6);
        translate([0, 0, -3]) {
            difference() {
                translate([0, 0, 11]) {
                    difference() {
                        translate([0, 0, 0]) {
                            back(10, 1.65, 0.2);
                        }
                        translate([-10, -10, 0]) {
                            cube([200, 200, 10]);
                        }
                    }
                }
            }
        }

        translate([-10, -10, -12]) cube([200, 200, 16.9]);

        // screw
        translate([0.5, 72, 0]) cylinder(10, 0.5, 0.5);
        translate([45, 72, 0]) cylinder(10, 0.5, 0.5);
        translate([118, 72, 0]) cylinder(10, 0.5, 0.5);

        // earphone
        translate([18, 75, -3]) cube([10, 6, 10]);

        // typec
        translate([74, 75, -3]) cube([15.5, 6, 10]);
    }
}

module shell() {
    ch = 3;
    cw = 1;
    ce = 0;

    difference() {
        h = 7;

        translate([-4, 50, 3]) cube([126, 27, 1]);

        union() {
            holder_z = 1;
            holder_h = h - holder_z;

            difference() {
                union() {
                    difference() {
                        frame(1.6);
                        frame(0);
                    }
                }
            }

            difference() {
                translate([0, 0, h - 0.1]) frame(1.6);
                translate([-10, -10, h + 1.6]) cube([200, 200, 10]);
            }

            aux();
        }

        // btn
        translate([8 - 0.5, 70, 1]) cylinder(5, 2.25, 2.25);
        translate([8 + 89, 70, 1]) cylinder(5, 2.25, 2.25);
        translate([8 + 101, 70, 1]) cylinder(5, 2.25, 2.25);

        // speaker
        translate([8 + 53.5, 69.5, 1]) cylinder(5, 5, 5);

        // earphone
        translate([8 + 12, 60, 2]) cube([6.5, 20, 5]);
    }

    // support
    translate([0.5, 67, 3]) cylinder(5.8, 2, 2);
    translate([42, 67, 3]) cylinder(5.8, 2, 2);
    translate([72, 70, 3]) cylinder(5.8, 2, 2);
    translate([118, 68, 3]) cylinder(5.8, 2, 2);

    // speaker
    translate([8 + 53.5, 69.5, 3]) difference() {
        cylinder(1.5, 6, 6);
        cylinder(1.5, 5, 5);
    }
}

upper();
lower();
shell();

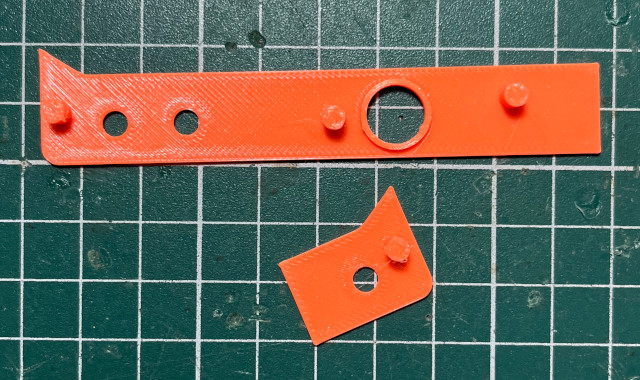

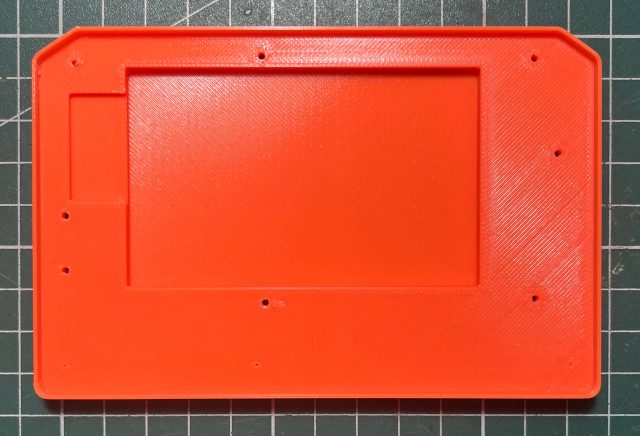

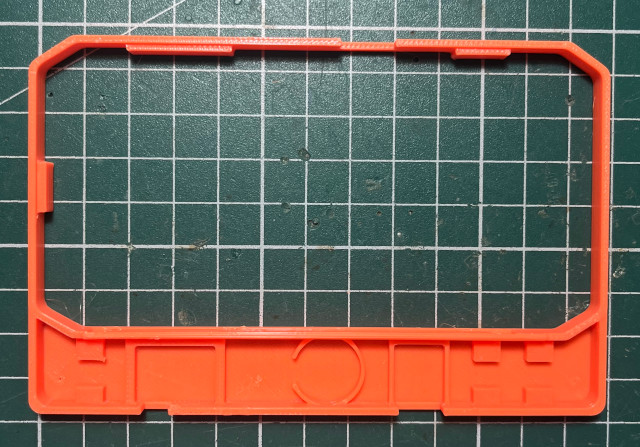

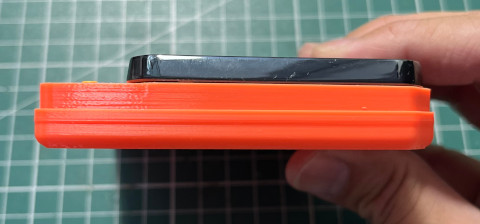

3D列印

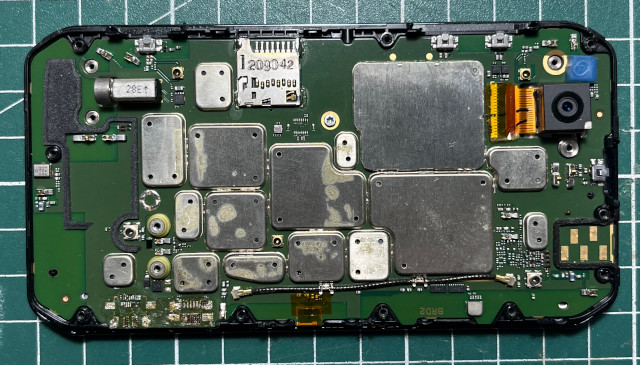

解焊


跳線

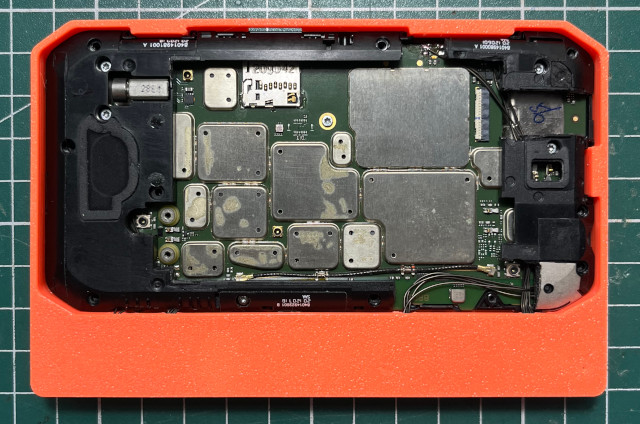

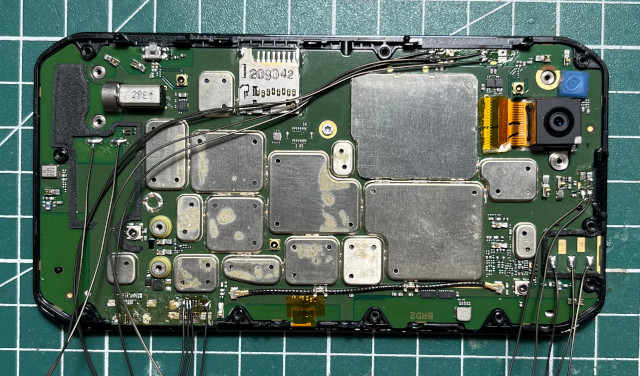

固定元件


走線

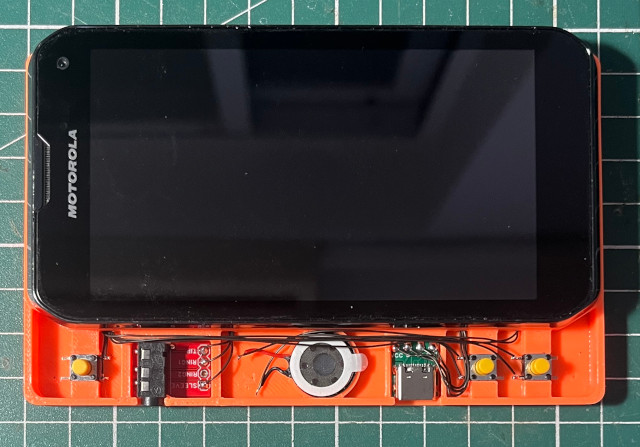

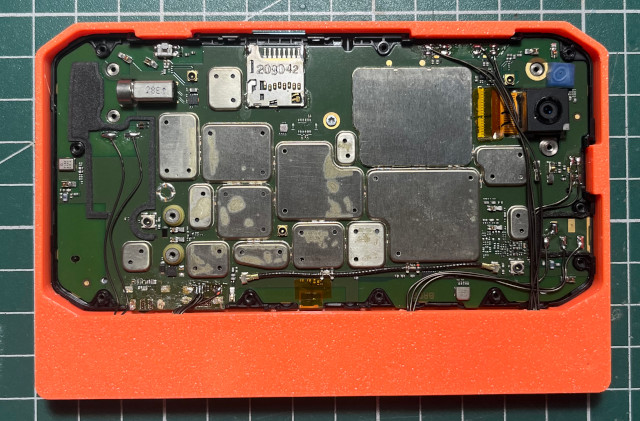

正面

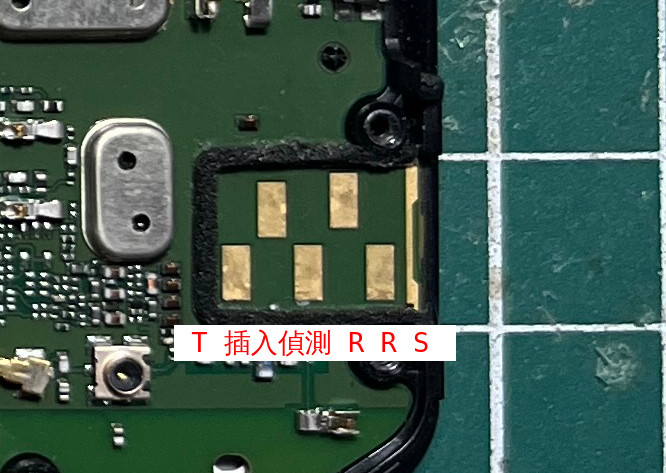

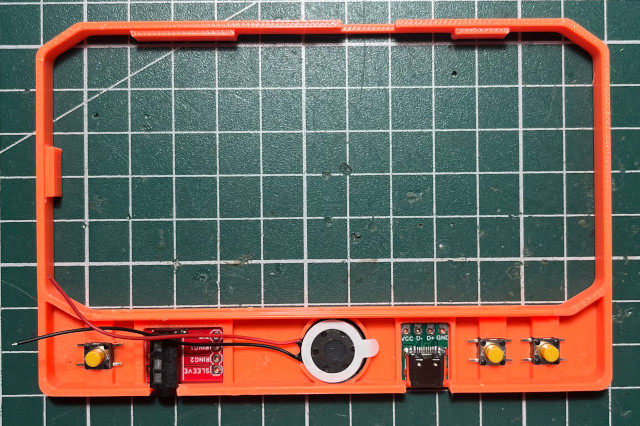

耳機座需要小改一下，用來偵測耳機插入的狀態

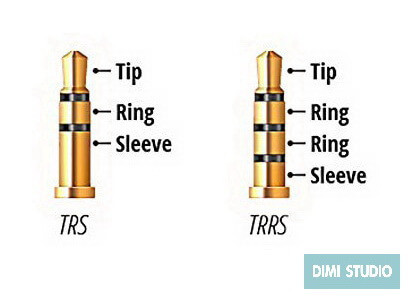

耳機腳位


XT897耳機腳位

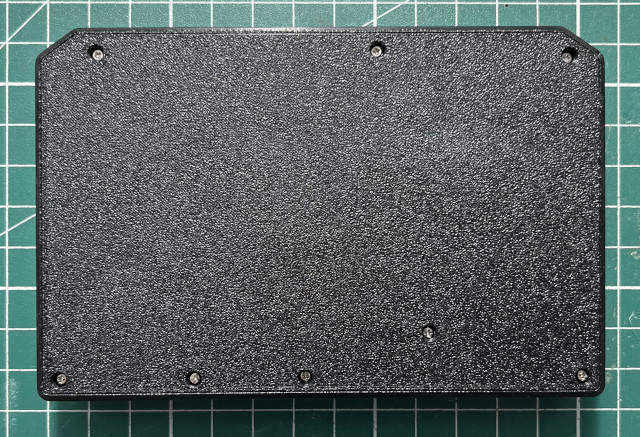

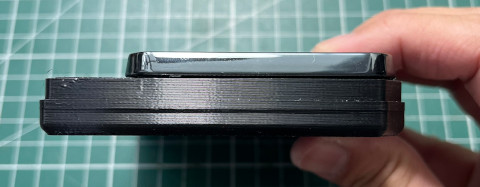

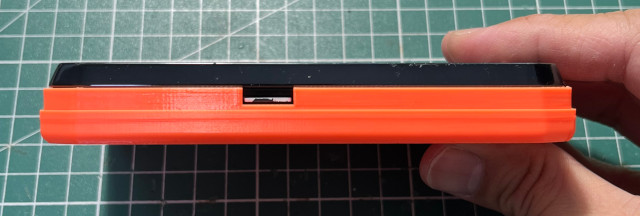

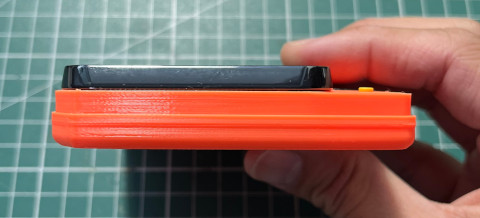

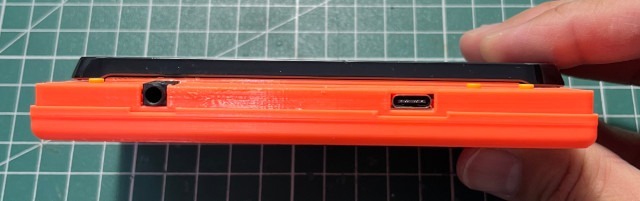

蓋上背蓋

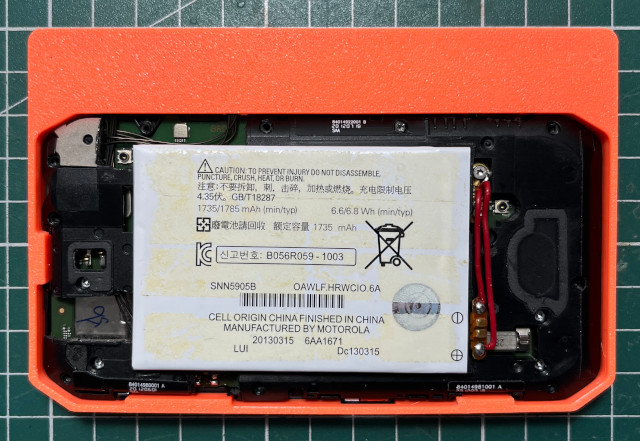

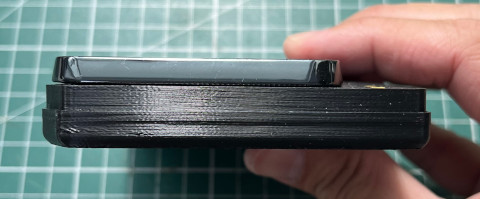

兩顆電池

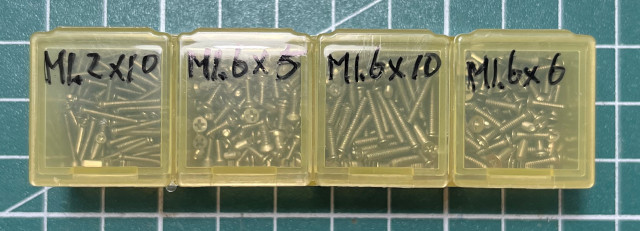

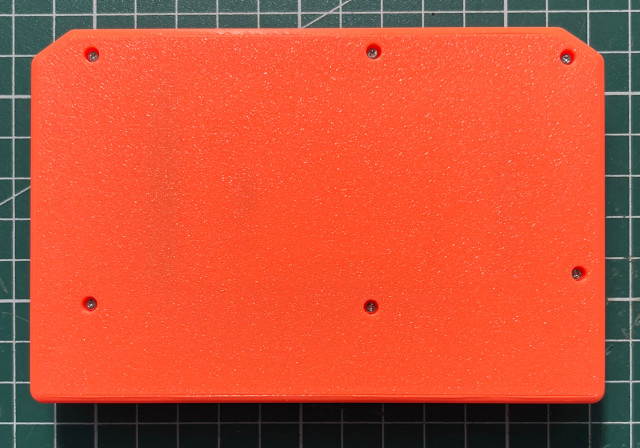

背蓋使用 M1.6x10 螺絲

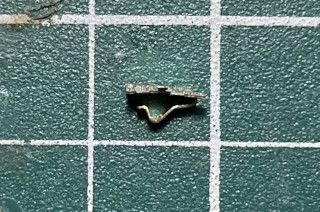

耳機座末端使用插入偵測墊片

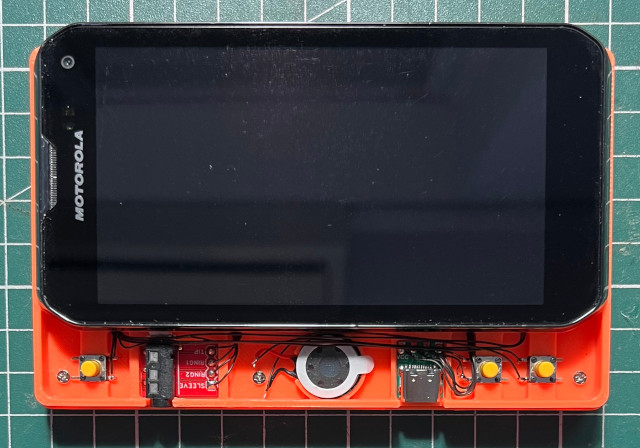

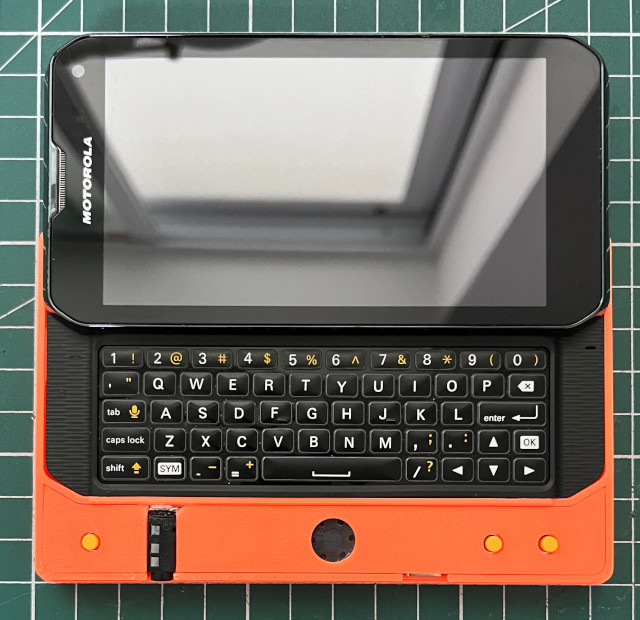

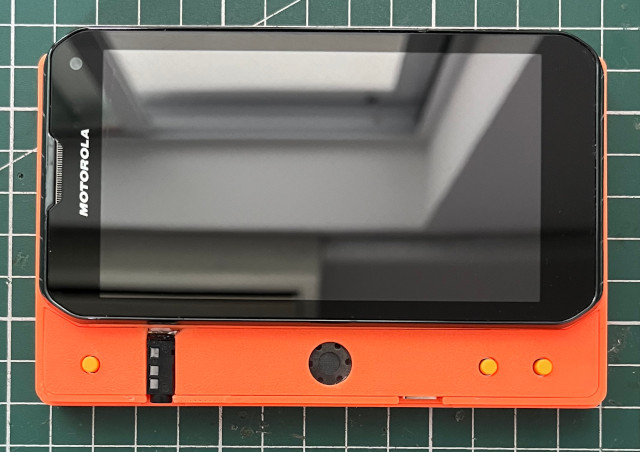

改上前蓋面板

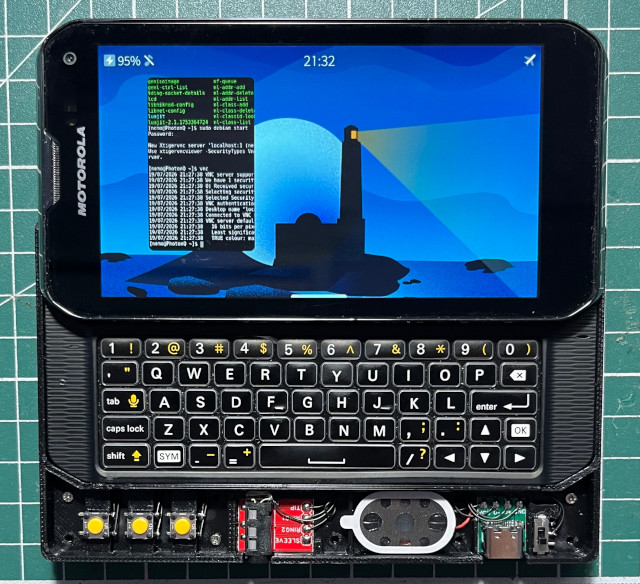

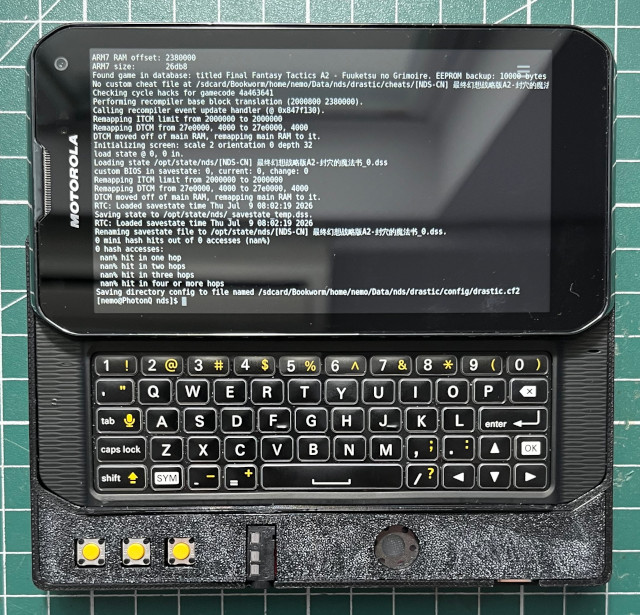

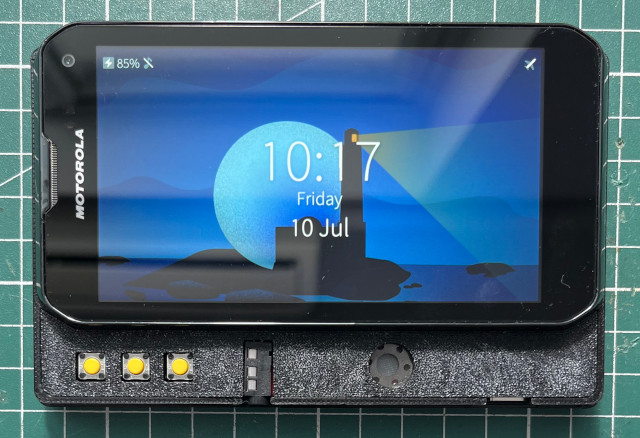

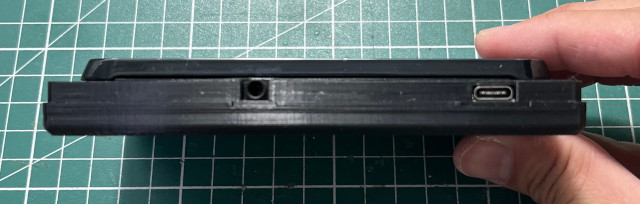

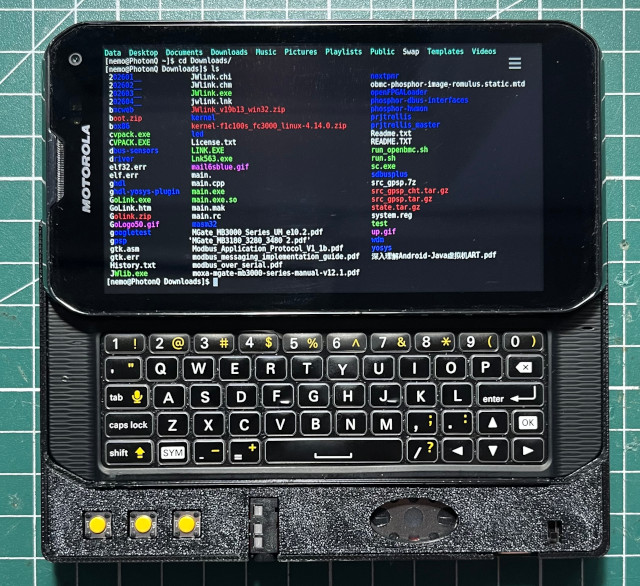

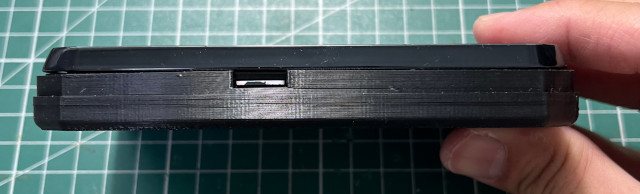

完成
