手機 - i16 Pro Max - 焊接UART接腳

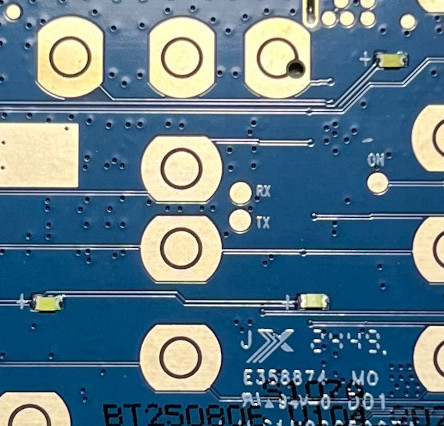

腳位

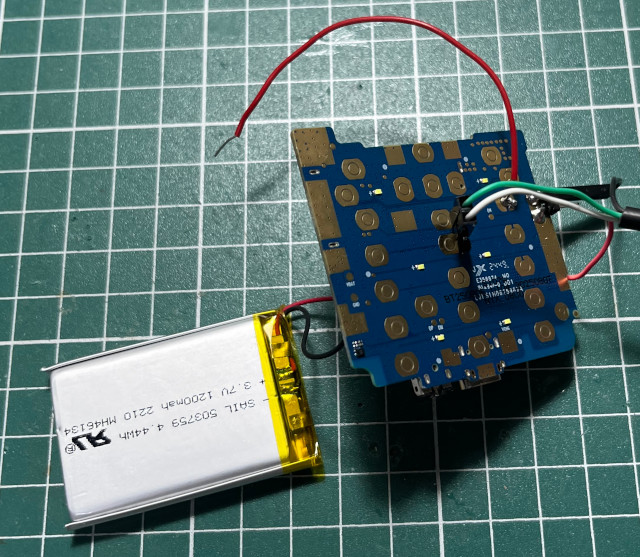

連接PC


Baudrate 115200bps

&RV1
UUUUUNBL
NRS
RBS
DDR init start
sdram_clk_init begin
dmc_dll_init end
lpddr_powerup_init end
dmc_init_post_setting end
qos init end
DDR init OK
boot0 started!: 144
boot0 UART/JTAG  mode = 2
boot0 nand flash ID 0x81c8!
load boot1 suc
run boot1:17e
boot1 started!: 186
rst_monitor_register is 0
TFLOAD_FLAG:0x0
hw_flag 0
kernel img size : 12674720
load kernel suc
run kernel:4cd
