參考資訊:
https://github.com/dlbeer/mspdebug
https://www.ti.com/lit/ds/symlink/msp430fr5994.pdf
https://www.ti.com/tool/MSP430-GCC-OPENSOURCE#downloads
https://www.reddit.com/r/embedded/comments/rbsuf9/struggling_to_get_timestamps_on_an_msp430fr5994/
https://vivonomicon.com/2018/11/22/bare-metal-msp430-programming-working-with-new-microcontrollers/

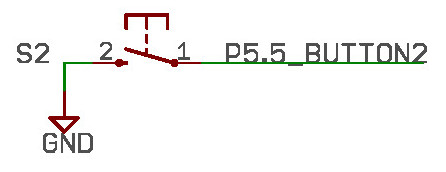

S2按鍵是連接到P5.5
DIR

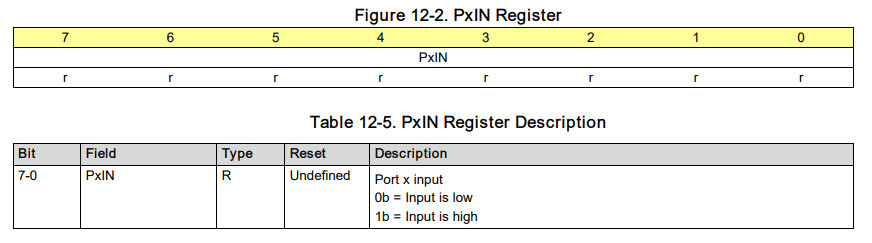

IN

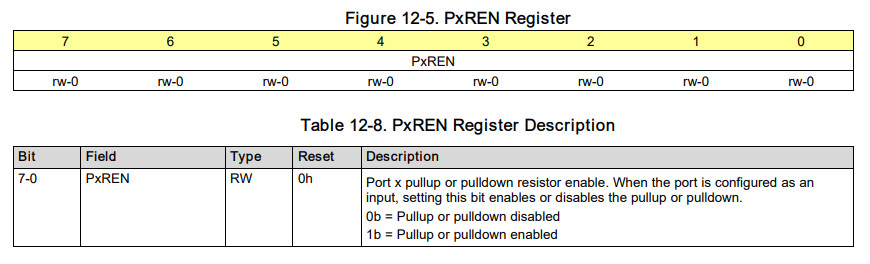

Pull-up
main.c
#include <msp430fr5994.h> int main(void) { WDTCTL = WDTPW + WDTHOLD; PM5CTL0 &= ~LOCKLPM5; P1DIR = BIT0; P5REN = BIT5; P5OUT = BIT5; while (1) { P1OUT = ~(P5IN >> 5); } }

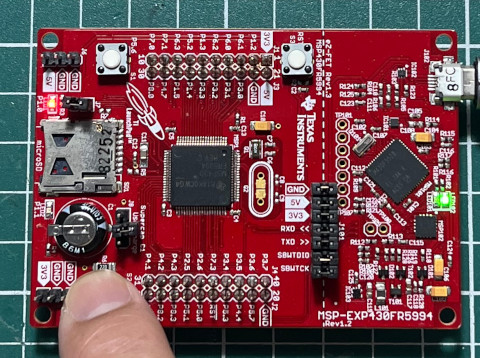

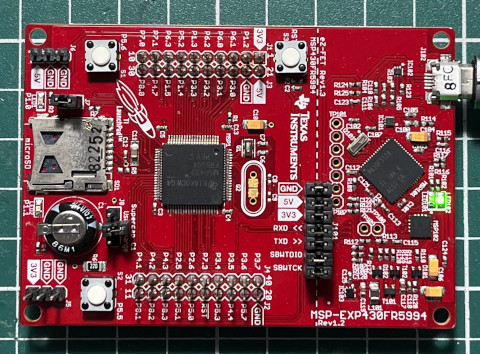

完成
