微處理器 - Silicon Labs C8051F300 (WCMCU-8051) - C/C++ - LED



參考資訊:
http://www.colecovision.eu/mcs51/C8051F300%20Development%20Board%20Module%20LED.shtml

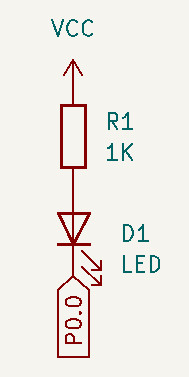

LED是連接到P0.0


Crossbar


XBR2


Watchdog


P0


main.c

#include <stdio.h>

__sfr __at(0x80) P0;
__sfr __at(0xe3) XBR2;
__sfr __at(0xd9) PCA0MD;

void delay(unsigned long cnt)
{
    while (cnt--) {
    }
}

void main(void)
{
    XBR2 = 0x40;
    PCA0MD = 0x00;

    while (1) {
        P0 ^= 1;
        delay(100000);
    }
}

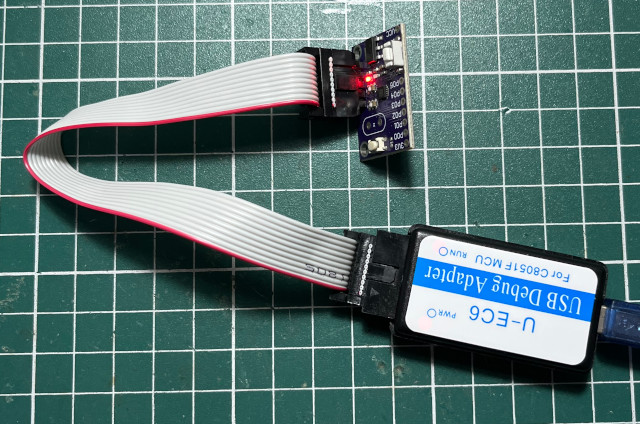

連接燒錄器


編譯、燒錄

$ sdcc -mmcs51 --std-c99 main.c
$ ec2writeflash --port=USB --mode=c2 --run --hex main.ihx
    FOUND:
    device	: C8051F300
    mode	: C2

       Loaded 158 bytes between: 000000 to 00009D
    Writing to flash
    start=0x00000, end=0x0009d
    done
    Starting target
    Exiting now
    Disconnect done

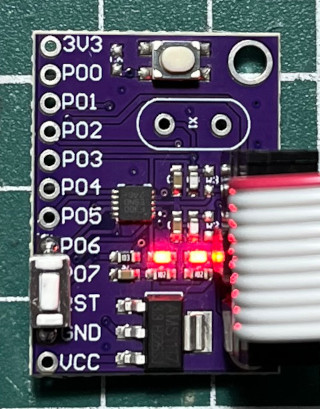

完成
