掌機 - R40S - 焊接UART接頭

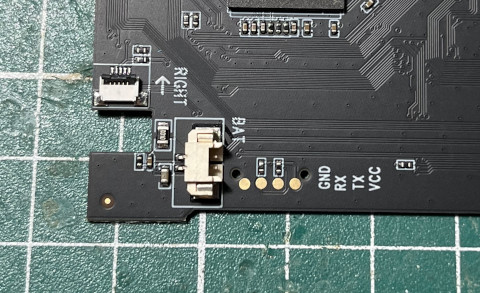

腳位

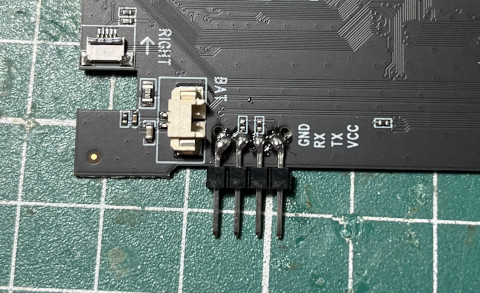

焊接

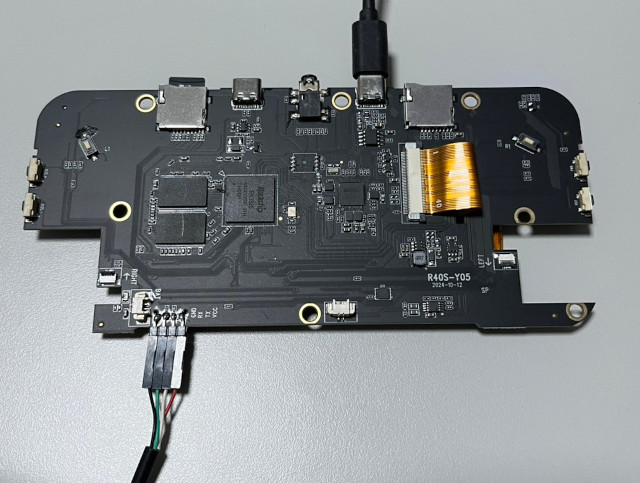

連接PC


Baudrate 115200bps

U-Boot 2017.09-00037-g0e26e35cb1-dirty (Aug 22 2024 - 08:13:33 -0700)

Model: Rockchip RK3326 ODROID-GO Advanced
DRAM:  992 MiB
Sysmem: init
Relocation Offset is: 3dabc000
Using default environment

adc0 (hw rev) 166
dwmmc@ff370000: 1
## Error: "rkimg_bootdev" not defined
Bootdev: mmc 0
rockchip_get_bootdev: Can't find dev_desc!
init_resource_list: dev_desc is NULL!
RKPARM: Invalid parameter part table
dtb in resource read fail, try dtb in spi flash
sfc nor id: 0 0 0
ret -1

Device 1: sfc nor id: 0 0 0
ret -1

spinor read: device 1 block # 8192, count 200 ... sfc nor id: 0 0 0
ret -1
-1 blocks read: ERROR
dtb in spi flash fail, try dtb in fat
reading rk3326-odroidgo2-linux.dtb
91515 bytes read in 8 ms (10.9 MiB/s)
I2c speed: 400000Hz
PMIC:  RK8170 (on=0x80, off=0x00)
vdd_logic 1100000 uV
vdd_arm 1100000 uV
*** Warning - bad CRC, using default environment

In:    serial
Out:   serial
Err:   serial
Model: Hardkernel ODROID-GO2
rockchip_get_bootdev: Can't find dev_desc!
[Vendor ERROR]:Invalid boot device type(0)
rockchip_get_bootdev: Can't find dev_desc!
[Vendor ERROR]:Invalid boot device type(0)
rockchip_get_bootdev: Can't find dev_desc!
rockchip_get_boot_mode: dev_desc is NULL!
CLK: (sync kernel. arm: enter 600000 KHz, init 600000 KHz, kernel 600000 KHz)
  apll 600000 KHz
  dpll 664000 KHz
  cpll 24000 KHz
  npll 1188000 KHz
  gpll 1200000 KHz
  aclk_bus 200000 KHz
  hclk_bus 150000 KHz
  pclk_bus 100000 KHz
  aclk_peri 200000 KHz
  hclk_peri 150000 KHz
  pclk_pmu 100000 KHz
TTTTTTshow logo...........
TTTTTTget display state
TTTTTTdisplay_init
Rockchip UBOOT DRM driver version: v1.0.1
Using display timing dts
TTTDetailed mode clock 30000 kHz, flags[a]
    H: 0480 0510 0520 0550
    V: 0800 0820 0830 0860
bus_format: 100e
TTTTTTset_display_state
TTTTTTdisplay_init
TTTTTTdisplay_enable
final DSI-Link bandwidth: 396 Mbps x 2
reading logo.bmp
1229814 bytes read in 57 ms (20.6 MiB/s)
switch to partitions #0, OK
mmc1 is current device
Net:   Net Initialization Skipped
No ethernet found.
Hit key to stop autoboot('CTRL+C'):  0
switch to partitions #0, OK
mmc1 is current device
reading boot.ini
502 bytes read in 2 ms (245.1 KiB/s)
## Executing script at 00800800
Retrieving file: /extlinux/rk3326-odroidgo2-linux.dtb.conf
reading /extlinux/rk3326-odroidgo2-linux.dtb.conf
234 bytes read in 4 ms (56.6 KiB/s)
1:      EmuELEC
Retrieving file: /KERNEL
reading /KERNEL
19456008 bytes read in 819 ms (22.7 MiB/s)
append: boot=UUID=2608-5414 disk=UUID=27cbba50-684b-4a82-b1ca-adf7ff4e648f quiet console=ttyFIQ0 console=tty0 net.iframes=0 fbcon=rotate:3 ssh consoleblank=0 loglevel=3
Retrieving file: /rk3326-odroidgo2-linux.dtb
reading /rk3326-odroidgo2-linux.dtb
91515 bytes read in 7 ms (12.5 MiB/s)
## Flattened Device Tree blob at 01f00000
   Booting using the fdt blob at 0x1f00000
  'reserved-memory' region@110000: addr=110000 size=f0000
   Loading Device Tree to 0000000031c95000, end 0000000031cae57a ... OK
reserve drm-loader-logo offset = 60192
reserve drm-logo mem = 000000003de00000, size = 3736832
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x0a200000 - 0x40000000 (size: 0x35e00000)
Total: 3079.537 ms

Starting kernel ...

EmuELEC:~ #
