掌機 - Q8 - Assembly - LCD(GPIO)

參考資料：
http://nano.lichee.pro/
https://mangopi.org/mangopi_r
https://www.allwinnertech.com/index.php?c=product&a=index&pid=4

main.s

    .global _start

    .equiv PIO_BASE,  0x01c20800
    .equiv PD,        (0x24 * 3)
    .equiv PE,        (0x24 * 4)
    .equiv PIO_CFG0,  0x00
    .equiv PIO_CFG1,  0x04
    .equiv PIO_CFG2,  0x08
    .equiv PIO_DATA,  0x10

    .equiv LCD_CS,    (1 << 21)
    .equiv LCD_RD,    (1 << 20)
    .equiv LCD_RS,    (1 << 19)
    .equiv LCD_WR,    (1 << 18)
    .equiv LCD_RST,   (1 << 11)
    .equiv LCD_BL,    (1 << 6)

    .arm
    .text
_start:
    .long 0xea000016
    .byte 'e', 'G', 'O', 'N', '.', 'B', 'T', '0'
    .long 0, __spl_size
    .byte 'S', 'P', 'L', 2
    .long 0, 0
    .long 0, 0, 0, 0, 0, 0, 0, 0
    .long 0, 0, 0, 0, 0, 0, 0, 0

_vector:
    b reset
    b .
    b .
    b .
    b .
    b .
    b .
    b .

reset:
    ldr r4, =PIO_BASE + PD
    ldr r1, =0x11111111
    str r1, [r4, #PIO_CFG0]
    str r1, [r4, #PIO_CFG1]
    ldr r1, =0x00111111
    str r1, [r4, #PIO_CFG2]

    ldr r4, =PIO_BASE + PE
    ldr r1, [r4, #PIO_CFG0]
    bic r1, #0xf000000
    orr r1, #0x1000000
    str r1, [r4, #PIO_CFG0]

    ldr r1, [r4, #PIO_CFG1]
    bic r1, #0xf000
    orr r1, #0x1000
    str r1, [r4, #PIO_CFG1]

    ldr r4, =PIO_BASE + PD
    ldr r1, =0xffffffff
    str r1, [r4, #PIO_DATA]

    ldr r4, =PIO_BASE + PE
    ldr r1, =0xffffffff
    str r1, [r4, #PIO_DATA]

    bl lcd_rst

    ldr r0, =0xb9
    bl lcd_cmd
    ldr r0, =0xff
    bl lcd_dat
    ldr r0, =0x83
    bl lcd_dat
    ldr r0, =0x57
    bl lcd_dat

    ldr r0, =1000
    bl delay

    ldr r0, =0xb6
    bl lcd_cmd
    ldr r0, =0x2c
    bl lcd_dat

    ldr r0, =0x11
    bl lcd_cmd

    ldr r0, =1000
    bl delay

    ldr r0, =0x35
    bl lcd_cmd

    ldr r0, =0x3a
    bl lcd_cmd
    ldr r0, =0x05
    bl lcd_dat

    ldr r0, =0x36
    bl lcd_cmd
    ldr r0, =0x38
    bl lcd_dat

    ldr r0, =0xb0
    bl lcd_cmd
    ldr r0, =0x68
    bl lcd_dat

    ldr r0, =0x2b
    bl lcd_cmd
    ldr r0, =0x00
    bl lcd_dat
    ldr r0, =0x00
    bl lcd_dat
    ldr r0, =0x01
    bl lcd_dat
    ldr r0, =0x3f
    bl lcd_dat

    ldr r0, =0x2a
    bl lcd_cmd
    ldr r0, =0x00
    bl lcd_dat
    ldr r0, =0x00
    bl lcd_dat
    ldr r0, =0x01
    bl lcd_dat
    ldr r0, =0xdf
    bl lcd_dat

    ldr r0, =0x29
    bl lcd_cmd
    ldr r0, =0x2c
    bl lcd_cmd

    ldr r4, =320*80
    ldr r5, =0xf800
0:
    mov r0, r5
    bl lcd_dat
    subs r4, #1
    bne 0b

    ldr r4, =320*80
    ldr r5, =0x7e0
0:
    mov r0, r5
    bl lcd_dat
    subs r4, #1
    bne 0b

    ldr r4, =320*80
    ldr r5, =0x1f
0:
    mov r0, r5
    bl lcd_dat
    subs r4, #1
    bne 0b
    b .

delay:
    push {lr}
0:
    subs r0, #1
    bne 0b
    pop {pc}

lcd_rst:
    push {r4, r5, lr}
    ldr r4, =PIO_BASE + PE
    ldr r5, =0xffffffff

    bic r5, #LCD_RST
    str r5, [r4, #PIO_DATA]
    ldr r0, =10000
    bl delay

    orr r5, #LCD_RST
    str r5, [r4, #PIO_DATA]
    ldr r0, =10000
    bl delay
    pop {r4, r5, pc}

lcd_wr:
    push {r4, r5, lr}
    ldr r4, =PIO_BASE + PD

    and r2, r0, #0x00ff
    and r3, r0, #0xff00
    lsl r2, #1
    lsl r3, #2

    eor r5, r5
    orr r5, r1
    orr r5, r2
    orr r5, r3
    orr r5, #LCD_RD
    str r5, [r4, #PIO_DATA]

    orr r5, #LCD_WR
    str r5, [r4, #PIO_DATA]
    pop {r4, r5, pc}

lcd_dat:
    push {lr}
    mov r1, #LCD_RS
    bl lcd_wr
    pop {pc}

lcd_cmd:
    push {lr}
    mov r1, #0
    bl lcd_wr
    pop {pc}
    .end

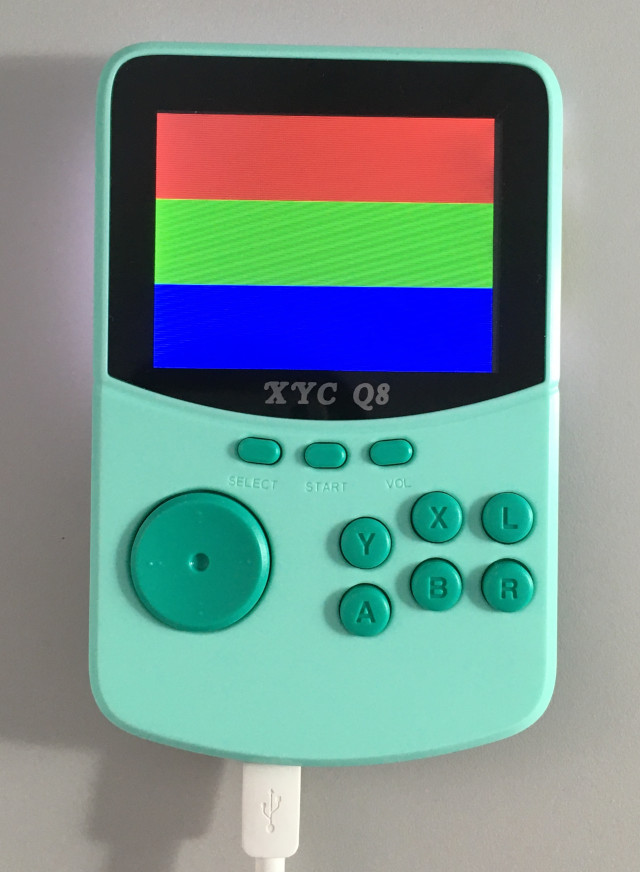

完成
