掌機 - PMP V - USB Boot流程

參考資訊：
https://github.com/OpenDingux/jzboot
http://d1.amobbs.com/bbs_upload782111/files_32/ourdev_576548.pdf

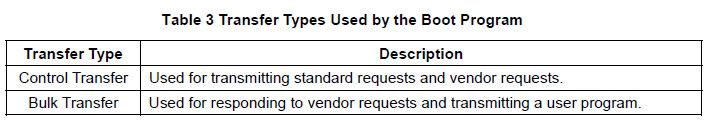

君正MIPS CPU支援USB開機啟動，傳輸的USB端點為控制和巨量兩種類型

傳輸流程如下：

支援命令如下：

Command	Description
0x00: VR_GET_CPU_INFO	query cpu information
0x01: VR_SET_DATA_ADDRESS	set data address
0x02: VR_SET_DATA_LENGTH	set data length
0x03: VR_FLUSH_CACHES	flush d-cache and i-cache
0x04: VR_PROGRAM_START1	execute stage1 program (<16KB) to initialize gpio and sdram
0x05: VR_PROGRAM_START2	execute stage2 program from sdram

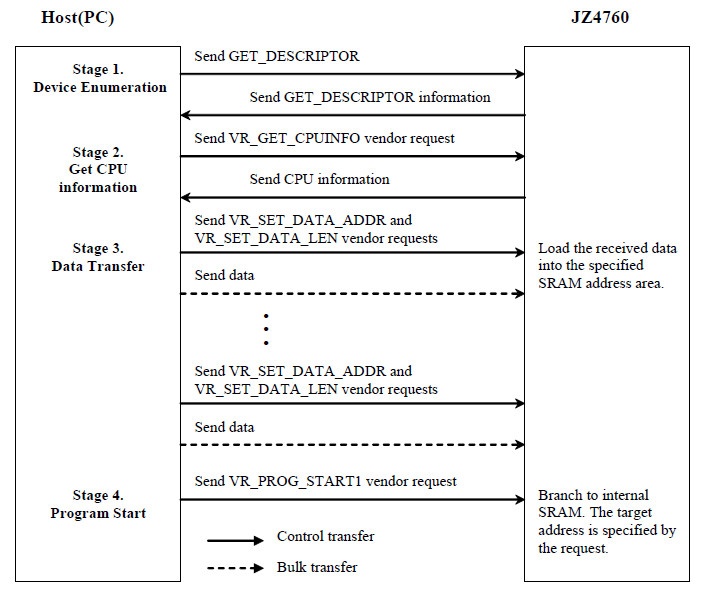

流程圖如下：

命令0x00的內容：

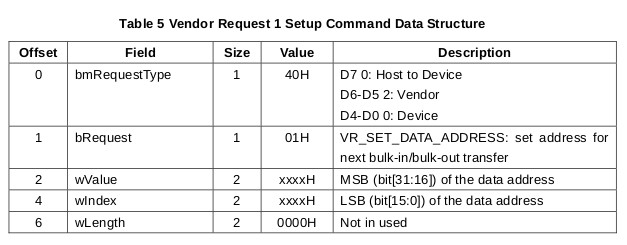

命令0x01的內容：

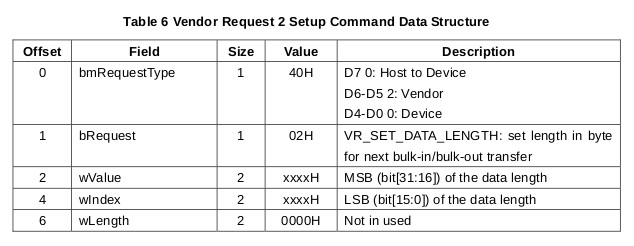

命令0x02的內容：

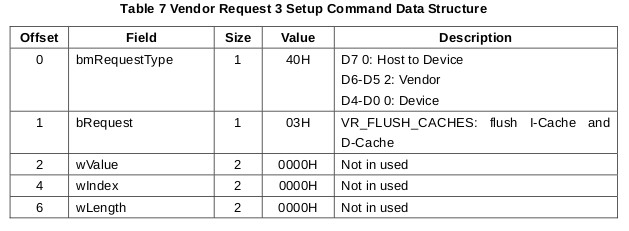

命令0x03的內容：

命令0x04的內容：

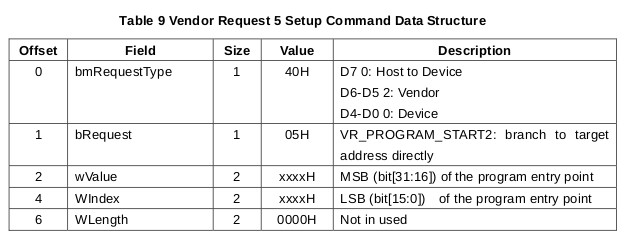

命令0x05的內容：

jzboot.c

#include <errno.h>
#include <getopt.h>
#include <libusb-1.0/libusb.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>

#define MY_NAME             "jzboot"

#define STAGE1_LOAD_ADDR    0x80000000
#define STAGE2_LOAD_ADDR    0x81000000

#define TIMEOUT_MS          5000

#define ARRAY_SIZE(x) (sizeof(x) ? sizeof(x) / sizeof((x)[0]) : 0)

enum commands {
    CMD_GET_CPU_INFO,
    CMD_SET_DATA_ADDR,
    CMD_SET_DATA_LEN,
    CMD_FLUSH_CACHES,
    CMD_START1,
    CMD_START2,
};

static const uint16_t ingenic_ids[] = {
    0x601a,
    0xa108,
};

static const uint16_t ingenic_product_ids[] = {
    0x4740,
    0x4750,
    0x4760,
    0x4770,
    0x4780,
};

static uint16_t pid;

static unsigned int stage1_load_addr = STAGE1_LOAD_ADDR;
static unsigned int stage2_load_addr = STAGE2_LOAD_ADDR;

static FILE *stage1;
static FILE *stage2;
static FILE *devicetree;

static const struct option options[] = {
    { "help", no_argument, 0, 'h' },
    { "stage1-addr", required_argument, 0, 'a' },
    { "stage2-addr", required_argument, 0, 'b' },
    { 0, 0, 0, 0 },
};

static const char *options_descriptions[] = {
    "Show this help and quit.",
    "Set the load and boot address of the 1st-stage bootloader.",
    "Set the load and boot address of the program.",
};

static void usage(void)
{
    unsigned int i;

    printf("Usage:\n\t" MY_NAME " [OPTIONS ...] stage1 [kernel] [devicetree]\n\nOptions:\n");
    for (i = 0; options[i].name; i++)
        printf("\t-%c, --%s\n\t\t\t%s\n",
            options[i].val, options[i].name,
            options_descriptions[i]);
}

static int cmd_get_info(libusb_device_handle *hdl)
{
    unsigned char info[8];

    int ret;

    ret = libusb_control_transfer(hdl, LIBUSB_ENDPOINT_IN |
        LIBUSB_REQUEST_TYPE_VENDOR | LIBUSB_RECIPIENT_DEVICE,
        CMD_GET_CPU_INFO, 0, 0, info, sizeof(info), TIMEOUT_MS);

    if (ret != sizeof(info))
        return -EIO;

    return 0;
}

static int cmd_control(libusb_device_handle *hdl, uint32_t cmd, uint32_t attr)
{
    return libusb_control_transfer(hdl, LIBUSB_ENDPOINT_OUT |
        LIBUSB_REQUEST_TYPE_VENDOR | LIBUSB_RECIPIENT_DEVICE,
        cmd, (attr >> 16) & 0xffff, attr & 0xffff,
        NULL, 0, TIMEOUT_MS);
}

static int cmd_load_data(libusb_device_handle *hdl, FILE *f, uint32_t addr, size_t *data_size)
{
    int ret, bytes_transferred;
    size_t size, to_read, to_write;
    unsigned char *data;
    char *ptr;

    /* Get the file size */
    fseek(f, 0, SEEK_END);
    size = ftell(f);
    fseek(f, 0, SEEK_SET);

    if (data_size)
        *data_size = size;

    data = malloc(size);
    if (!data)
        return -ENOMEM;

    ptr = (char *)data;
    to_read = size;
    do {
        size_t bytes_read = fread(ptr, 1, to_read, f);
        if (!bytes_read) {
            ret = -EIO;
            goto out_free;
        }

        ptr += bytes_read;
        to_read -= bytes_read;
    } while (to_read > 0);

    /* Send the SET_DATA_LEN command */
    ret = cmd_control(hdl, CMD_SET_DATA_LEN, size);
    if (ret)
        goto out_free;

    /* Send the SET_DATA_ADDR command */
    ret = cmd_control(hdl, CMD_SET_DATA_ADDR, addr);
    if (ret)
        goto out_free;

    ptr = (char *)data;
    to_write = size;

    do {
        ret = libusb_bulk_transfer(hdl, LIBUSB_ENDPOINT_OUT | 0x1,
             ptr, (int)to_write,
             &bytes_transferred, TIMEOUT_MS);

        if (ret)
            goto out_free;

        to_write -= bytes_transferred;
        ptr += bytes_transferred;
    } while (to_write > 0);

    printf("Uploaded %lu bytes at address 0x%08x\n",
                 (unsigned long)size, addr);

out_free:
    free(data);
    return ret;
}

int main(int argc, char **argv)
{
    libusb_context *usb_ctx;
    libusb_device_handle *hdl = NULL;
    int exit_code = EXIT_FAILURE;
    size_t kernel_size;
    unsigned int i, j;
    int ret, c;
    char *end;

    while ((c = getopt_long(argc, argv, "+ha:b:", options, NULL)) != -1) {
        switch (c) {
        case 'h':
            usage();
            return EXIT_SUCCESS;
        case 'a':
            stage1_load_addr = strtol(optarg, &end, 16);
            if (optarg == end) {
                fprintf(stderr, "Unable to parse stage1 addr\n");
                return EXIT_FAILURE;
            }
            break;
        case 'b':
            stage2_load_addr = strtol(optarg, &end, 16);
            if (optarg == end) {
                fprintf(stderr, "Unable to parse stage2 addr\n");
                return EXIT_FAILURE;
            }
            break;
        case '?':
            return EXIT_FAILURE;
        }
    }

    if (optind == argc || argc > optind + 3) {
        fprintf(stderr, "Unable to parse arguments.\n");
        usage();
        return EXIT_FAILURE;
    }

    stage1 = fopen(argv[optind], "rb");
    if (!stage1) {
        fprintf(stderr, "Unable to open stage1 program\n");
        return EXIT_FAILURE;
    }

    if (argc >= optind + 2) {
        stage2 = fopen(argv[optind + 1], "rb");
        if (!stage2) {
            fprintf(stderr, "Unable to open stage2 program\n");
            return EXIT_FAILURE;
        }
    }

    if (argc >= optind + 3) {
        devicetree = fopen(argv[optind + 2], "rb");
        if (!devicetree) {
            fprintf(stderr, "Unable to open devicetree\n");
            return EXIT_FAILURE;
        }
    }

    ret = libusb_init(&usb_ctx);
    if (ret) {
        fprintf(stderr, "Unable to init libusb\n");
        goto out_close_files;
    }

    for (j = 0; !hdl && j < ARRAY_SIZE(ingenic_ids); j++) {
        for (i = 0; !hdl && i < ARRAY_SIZE(ingenic_product_ids); i++) {
            hdl = libusb_open_device_with_vid_pid(usb_ctx,
                ingenic_ids[j], ingenic_product_ids[i]);
        }
    }


    if (!hdl) {
        fprintf(stderr, "Unable to find Ingenic device.\n");
        goto out_exit_libusb;
    }

    pid = ingenic_product_ids[i - 1];

    ret = libusb_claim_interface(hdl, 0);
    if (ret) {
        fprintf(stderr, "Unable to claim interface 0\n");
        goto out_close_dev_handle;
    }

    if (cmd_get_info(hdl)) {
        fprintf(stderr, "Unable to read CPU info\n");
        goto out_close_dev_handle;
    }

    printf("Found Ingenic JZ%x based device\n", pid);

    ret = cmd_load_data(hdl, stage1, stage1_load_addr, NULL);
    if (ret) {
        fprintf(stderr, "Unable to upload stage1 bootloader\n");
        goto out_close_dev_handle;
    }

    ret = cmd_control(hdl, CMD_START1, stage1_load_addr);
    if (ret) {
        fprintf(stderr, "Unable to execute stage1 bootloader\n");
        goto out_close_dev_handle;
    }

    if (!stage2)
        goto out_complete;

    printf("Waiting for stage1 bootloader to complete operation...\n");
    for (i = 0; i < 100; i++) {
        if (!cmd_get_info(hdl))
            break;

        usleep(10000); /* 10ms * 100 = 1s */
    }

    if (i == 100) {
        fprintf(stderr, "Stage1 bootloader did not return.\n");
        goto out_close_dev_handle;
    }

    ret = cmd_load_data(hdl, stage2, stage2_load_addr, &kernel_size);
    if (ret) {
        fprintf(stderr, "Unable to upload stage2 program\n");
        goto out_close_dev_handle;
    }

    if (devicetree) {
        ret = cmd_load_data(hdl, devicetree,
                        stage2_load_addr + kernel_size, NULL);
        if (ret) {
            fprintf(stderr, "Unable to upload devicetree\n");
            goto out_close_dev_handle;
        }
    }

    ret = cmd_control(hdl, CMD_FLUSH_CACHES, 0);
    if (ret) {
        fprintf(stderr, "Unable to flush caches\n");
        goto out_close_dev_handle;
    }

    ret = cmd_control(hdl, CMD_START2, stage2_load_addr);
    if (ret) {
        fprintf(stderr, "Unable to execute program\n");
        goto out_close_dev_handle;
    }

out_complete:
    printf("Operation complete.\n");
    exit_code = EXIT_SUCCESS;
out_close_dev_handle:
    libusb_close(hdl);
out_exit_libusb:
    libusb_exit(usb_ctx);
out_close_files:
    fclose(stage1);
    if (stage2)
        fclose(stage2);
    if (devicetree)
        fclose(devicetree);
    return exit_code;
}

編譯命令：

$ gcc jzboot.c -o jzboot -lusb-1.0
