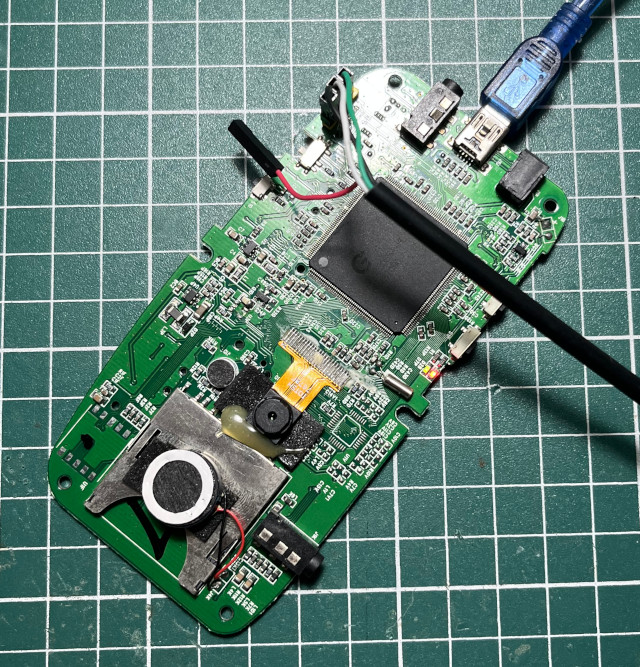

掌機 - PMP - 焊接UART接頭

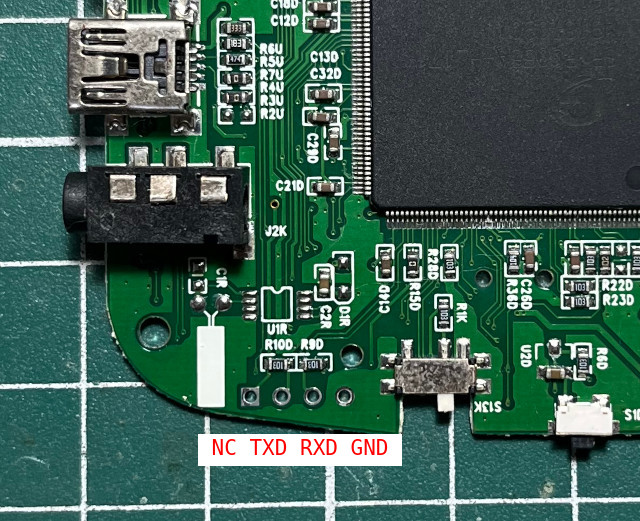

UART腳位


連接PC


Baudrate 115200bps

wfFS+
Ver:2.1.0
Boot From Nand
EC D5 14 B6
Get nand info from header...
nandUpdateInfo blockSize:524288
nandUpdateInfo pageSize:4096
nandUpdateInfo megaByte:2048
nandUpdateInfo addrCycle:5
nandUpdateInfo acTiming:0xFFFFFFFF
nandUpdateInfo nandType:0xFFFFFFFF
nandBCHPageCorrect error occurs at 6 1
nandBCHPageCorrect error occurs at EC 8
nandBCHPageCorrect error occurs at 1A 10
nandBCHPageCorrect error occurs at 13C 8
nandBCHPageCorrect error occurs at 197 2
nandBCHPageCorrect error occurs at 7B 2
nandBCHPageCorrect error occurs at 6D 20
nandBCHPageCorrect error occurs at 6D 20
nandBCHPageCorrect error occurs at 166 8
nandBCHPageCorrect error occurs at F5 20
nandBCHPageCorrect error occurs at 125 1
nandBCHPageCorrect error occurs at 1AC 20
nandBCHPageCorrect error occurs at 1D 80
nandBCHPageCorrect error occurs at 13E 1
nandBCHPageCorrect error occurs at 11D 1
nandBCHPageCorrect error occurs at 1EE 20
nandBCHPageCorrect error occurs at 1FF 10
nandBCHPageCorrect error occurs at 171 40
nandBCHPageCorrect error occurs at 11A 10
nandBCHPageCorrect error occurs at 97 8
nandBCHPageCorrect error occurs at F0 1
nandBCHPageCorrect error occurs at 36 20
nandBCHPageCorrect error occurs at D3 1
nandBCHPageCorrect error occurs at 1EA 4
nandBCHPageCorrect error occurs at 206 10
Boot Success Remap Go
S+
3052C_ V8_8M_LCM

PWR Init TV-IN Detect Pin
hwNandIdRead[0]:0xEC 0xD5 0x14 0xB6
hwNandIdRead[1]:0x0 0x0 0x0 0x0
nandCacheEnable !!!!!!!!!!!!!!!!!!!!!!!!!!!!!
pstPartitionInfo==NULL
pstPartitionInfo==NULL
mem no free

 --- sys speed change!

 Appentry ... APPENTRY V0.9.0.1
 Read success!!!!
no empty entry!
mem free err2
chenting  $$$$$$$$$$$$$$
pstPartitionInfo==NULL
*KM00002*
Nand Size 2 times multipled

---  run mode = multilanguage mode ---

---  run mode = multilanguage mode ---

Library ONOFF V0.9.0.1

---  run mode = multilanguage mode ---

Library HOME V0.9.0.1
[3052 USB] HIGH SPEED
pstPartitionInfo==NULL
