掌機 - Miyoo Mini Flip - 焊接UART

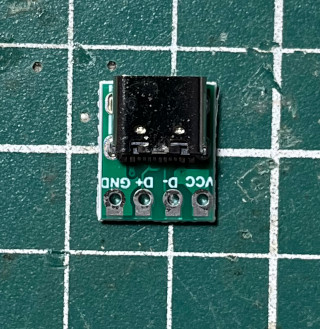

USB Type-C

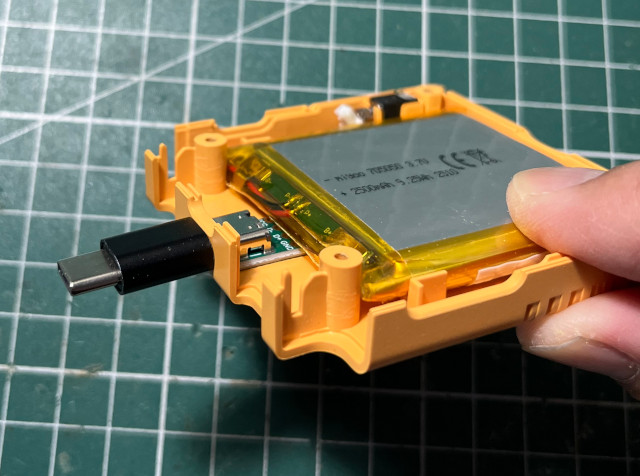

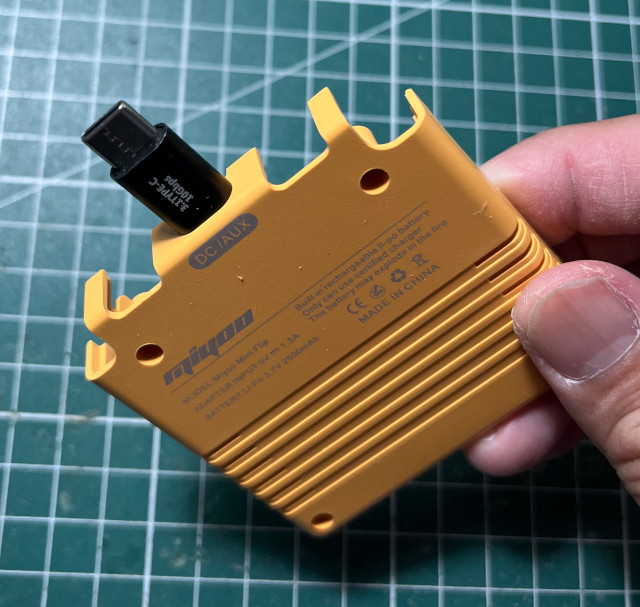

預計擺放的位置

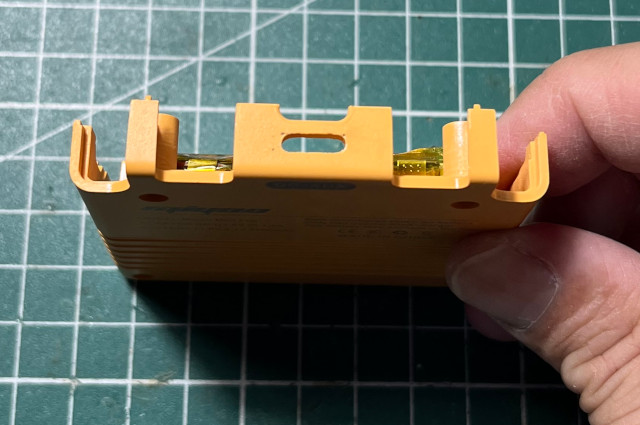

鑿完洞後

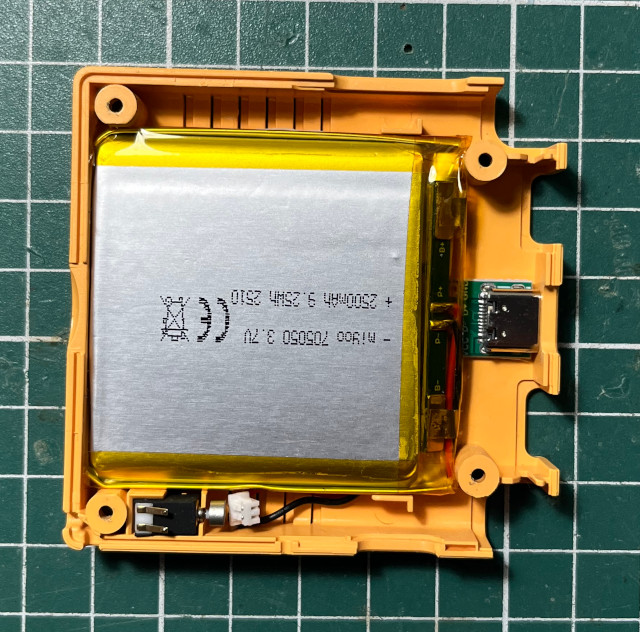

三秒膠固定

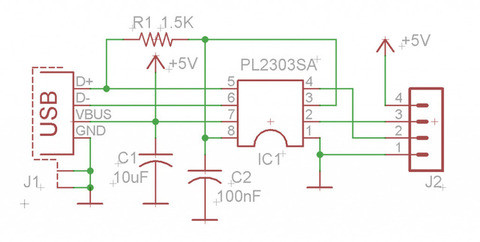

PL-2303SA電路

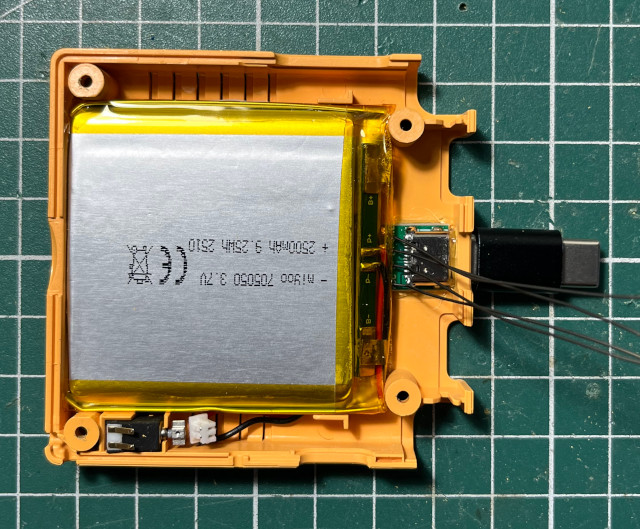

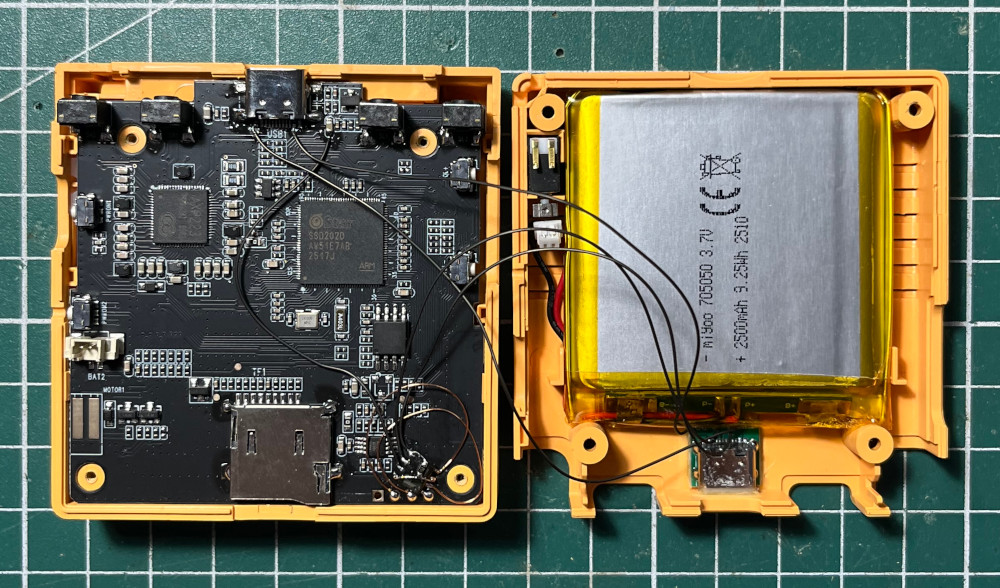

跳線

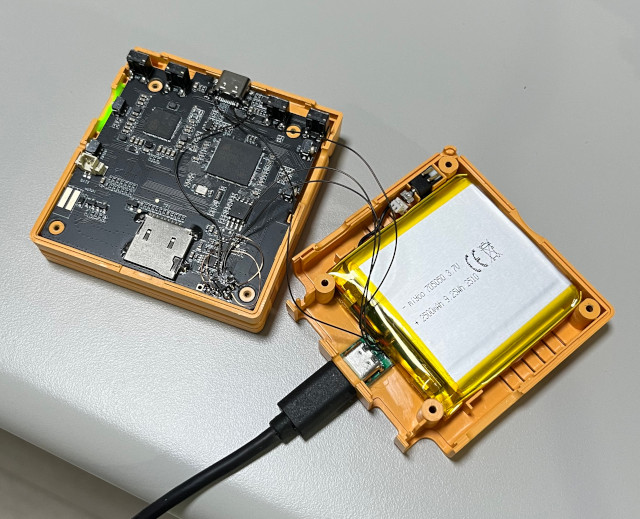

連接到PC

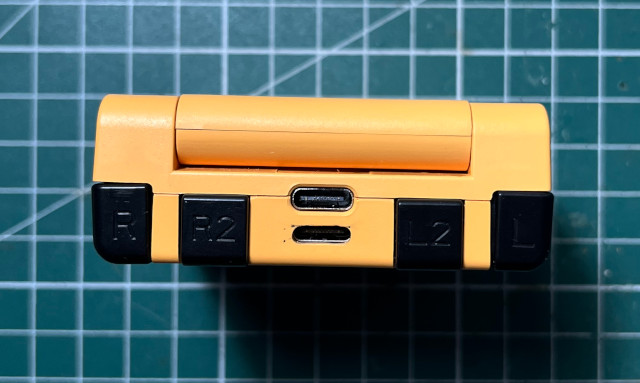

完美


Baudrate 115200bps

SF: 2097152 bytes @ 0x60000 Read: OK
gpio debug MHal_GPIO_Pad_Set: pin=8
        ====   mdrv_gpio_set_high   ====
        ====   mdrv_gpio_get_level   ====
gpio[8] is 1
gpio debug MHal_GPIO_Pad_Set: pin=4
        ====   mdrv_gpio_set_high   ====
        ====   mdrv_gpio_get_level   ====
gpio[4] is 1
##  Booting kernel from Legacy Image at 22000000 ...
   Image Name:   MVX4##I2M#g#######KL_LX409##[BR:
   Image Type:   ARM Linux Kernel Image (lzma compressed)
   Data Size:    1951912 Bytes = 1.9 MiB
   Load Address: 20008000
   Entry Point:  20008000
   Verifying Checksum ... OK
-usb_stop(USB_PORT0)
-usb_stop(USB_PORT1)
-usb_stop(USB_PORT2)
   Uncompressing Kernel Image ...
[XZ] !!!reserved 0x21000000 length=0x 1000000 for xz!!
   XZ: uncompressed size=0x3ba000, ret=7
OK
atags:0x20000000

Starting kernel ...
