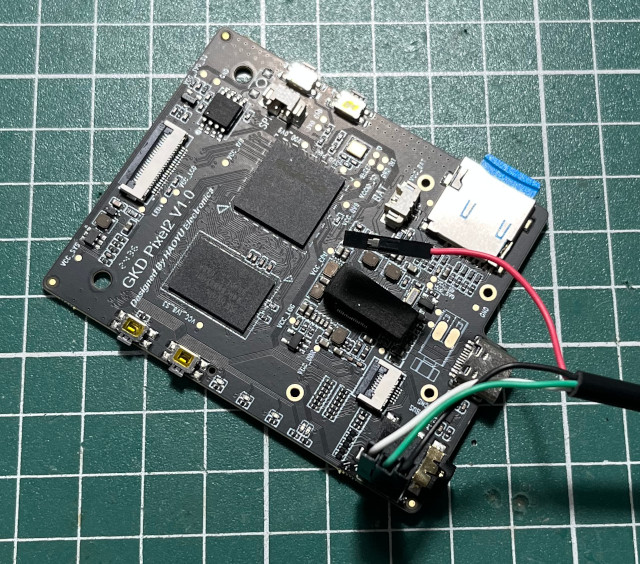

掌機 - GKD Pixel 2 - 焊接UART

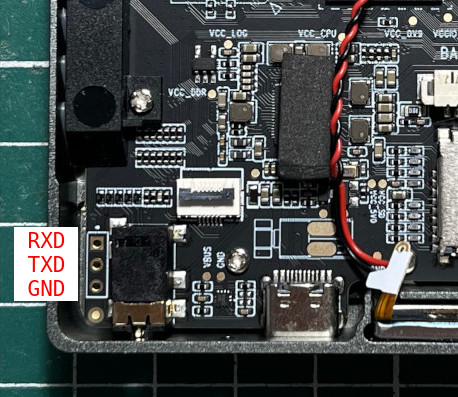

腳位



Baudrate 1500000bps

DDR 20231220 fwver: v2.09
ln
vlog0.95v
LP4,1024MB,333MHz
bw      col     bk      row     cs      dbw
32      10      8       15      1       16
OUT
LOADER Release Time: Jul 31 2023 14:49:42, version: 1.37
support nand flash type: slc
ROM VER:0x56323030, 26
hamming_distance:3326 3330 3
chip_id:524b3326_0,0
ChipType = 0x1a, 1271
...nandc_flash_init enter...
No.1 FLASH ID:ff ff ff ff ff ff
sfc nor id: ef 40 17
read_lines: 2
mmc0:cmd5,20
SdmmcInit=0 0
BootCapSize=0
UserCapSize=59638MB
FwPartOffset=2000 , 0
StorageInit ok = 33455
SecureMode = 0
Secure read PBA: 0x4
Secure read PBA: 0x404
Secure read PBA: 0x804
Secure read PBA: 0xc04
Secure read PBA: 0x1004
SecureInit ret = 0, SecureMode = 0
atags_set_bootdev: ret:(0)
GPT 0x33100c8 signature is wrong
recovery gpt...
GPT 0x33100c8 signature is wrong
recovery gpt fail!
LoadTrust Addr:0x4000
No find bl30.bin
Load uboot, ReadLba = 2000
Load OK, addr=0x200000, size=0x104528
RunBL31 0x40000 @ 209107 us
INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-680-g46064b2d5:huan.he, fwver: v1.34
NOTICE:  BL31: Built : 16:33:23, Dec 26 2023
NOTICE:  BL31:Rockchip release version: v1.0
INFO:    ARM GICv2 driver initialized
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 1
INFO:    plat_rockchip_pmu_init: pd status f00e
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-743-gb5340fd65 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #1 Mon Aug 28 10:48:15 CST 2023 aarch64
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0x200000
INFO:    SPSR = 0x3c9


U-Boot 2017.09 (Jan 16 2025 - 02:41:15 -0500)

Model: Rockchip RK3326S Pixel2
PreSerial: 2, raw, 0xff160000
DRAM:  1014 MiB
Sysmem: init
Relocation Offset: 3da74000
Relocation fdt: 3bc692a0 - 3bc6accf
CR: M/C/I
Using default environment

DM: v1
GPT: my_lba incorrect: 0 != 1
sfc nor id: ef 40 17

Device 1: GPT: last_usable_lba incorrect: 7FDE > 4000
GPT: my_lba incorrect: 0 != 3fff
Vendor: 0x0308 Rev: V1.00 Prod: rkflash-SpiNor
            Type: Hard Disk
            Capacity: 8.0 MB = 0.0 GB (16384 x 512)
... is now current device
200 blocks read: OK
I2c0 speed: 400000Hz
PMIC:  RK8170 (on=0x40, off=0x00)
vdd_logic 950000 uV
vdd_arm 900000 uV
Model: GameKiddy GKD Pixel2 Uboot
switch to partitions #0, OK
mmc1 is current device
Found IDB in SDcard
dwmmc@ff370000: 1 (SD)
Bootdev(atags): mmc 1
MMC1: Legacy, 52Mhz
PartType: DOS
No misc partition
boot mode: None
CLK: (sync kernel. arm: enter 600000 KHz, init 600000 KHz, kernel 600000 KHz)
  apll 600000 KHz
  dpll 2112000 KHz
  cpll 24000 KHz
  npll 1188000 KHz
  gpll 1200000 KHz
  aclk_bus 200000 KHz
  hclk_bus 150000 KHz
  pclk_bus 100000 KHz
  aclk_peri 200000 KHz
  hclk_peri 150000 KHz
  pclk_pmu 100000 KHz
No misc partition
Enable charge animation display
Could not find baseparameter partition
Rockchip UBOOT DRM driver version: v1.0.1
Using display timing dts
dsi@ff450000:  detailed mode clock 25000 kHz, flags[a]
    H: 0480 0520 0530 0570
    V: 0640 0680 0690 0730
bus_format: 100e
final DSI-Link bandwidth: 330 Mbps x 2
Enter U-Boot charging mode
SHOW: battery_1.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_2.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_3.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_1.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_2.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_3.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_1.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_2.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_3.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_1.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_2.bmp
Uncompressed size: 921654 = 0xE1036
SHOW: battery_3.bmp
Uncompressed size: 921654 = 0xE1036
power key long pressed...
screen on
Exit charge animation...
No resource partition
No file: logo.bmp
failed to display uboot logo
charging time total: 9.254s, soc=66%, vol=4200mv
** Unable to read file logo.bmp **
logo.bmp file not found! filesize = 0
400 blocks read: OK
Uncompressed size: 921654 = 0xE1036
switch to partitions #0, OK
mmc1 is current device
Net:   Net Initialization Skipped
No ethernet found.
Hit key to stop autoboot('CTRL+C'):  0
switch to partitions #0, OK
mmc1 is current device
cfgload - read 'boot.ini' from FAT partiton

Usage:
cfgload
    - read boot.ini from the first partiton treated as FAT partiton
reading Image
19720200 bytes read in 825 ms (22.8 MiB/s)
reading rk3326s-gkd-pixel2.dtb
103809 bytes read in 7 ms (14.1 MiB/s)
Fdt Ramdisk skip relocation
No misc partition
## Flattened Device Tree blob at 0x01f00000
   Booting using the fdt blob at 0x01f00000
