驅動程式 - Windows Driver Model (WDM) - 如何使用verifier驗證驅動程式


Windows系統本身有一個內建的驅動程式驗證工具Verifier，該工具不需要額外安裝就可以做驅動程式的IRP、記憶體等項目驗證，使用者電腦如果沒有安裝WHQL驗證工具，則可以使用此工具先做簡單驗證，當然，建議要Release驅動程式前，還是必須做一次WHQL驗證，確保Release的驅動程式不會有問題，在測試Verifier之前，必須確定驅動程式有TestSign或者正式的簽章，下圖是司徒使用的測試簽章


執行Command Line，然後輸入：verifier

P.S. 記得先把TestSigning打開(bcdedit /set testsigning on)

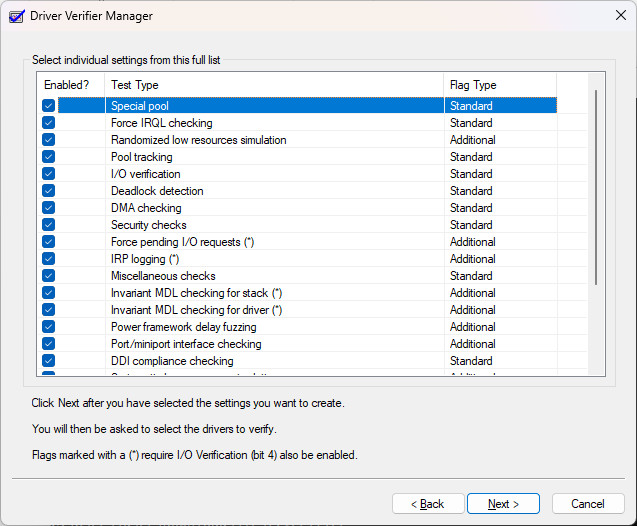

全選


Next

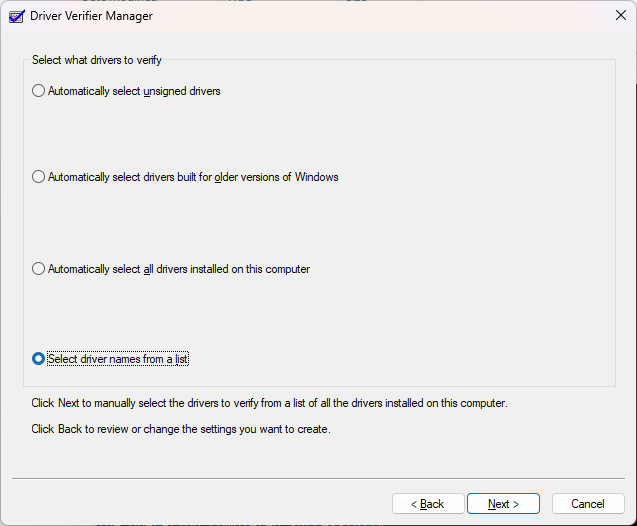

選擇從清單選擇

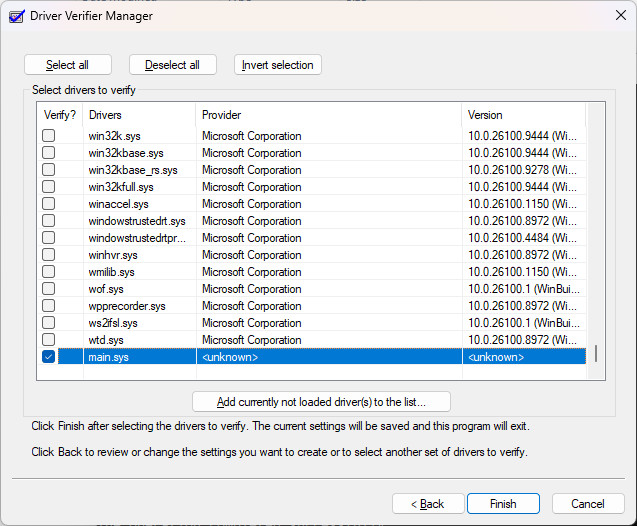

選擇測試的驅動程式


重新開機後，可以使用Query查詢結果

C:\> verifier /query

Time Stamp: 10/01/2026 14:03:56.409
Verifier Flags: 0x03bfefbf

  Standard Flags:
    [X] 0x00000001 Special pool.
    [X] 0x00000002 Force IRQL checking.
    [X] 0x00000008 Pool tracking.
    [X] 0x00000010 I/O verification.
    [X] 0x00000020 Deadlock detection.
    [X] 0x00000080 DMA checking.
    [X] 0x00000100 Security checks.
    [X] 0x00000800 Miscellaneous checks.
    [X] 0x00020000 DDI compliance checking.

  Additional Flags:
    [X] 0x00000004 Randomized low resources simulation.
    [X] 0x00000200 Force pending I/O requests.
    [X] 0x00000400 IRP logging.
    [X] 0x00002000 Invariant MDL checking for stack.
    [X] 0x00004000 Invariant MDL checking for driver.
    [X] 0x00008000 Power framework delay fuzzing.
    [X] 0x00010000 Port/miniport interface checking.
    [X] 0x00040000 Systematic low resources simulation.
    [X] 0x00080000 DDI compliance checking (additional).
    [X] 0x00200000 NDIS/WIFI verification.
    [X] 0x00800000 Kernel synchronization delay fuzzing.
    [X] 0x01000000 VM switch verification.
    [X] 0x02000000 Code integrity checks.

  Internal Flags:
    [X] 0x00100000 Extended Verifier flags (internal).
    [X] Indicates flag is enabled.

  Verifier Statistics Summary
    Raise IRQLs:                                     0
    Acquire Spin Locks:                              0
    Synchronize Executions:                          0
    Trims:                                       36196

    Pool Allocations Attempted:                  12322
    Pool Allocations Succeeded:                  12322
    Pool Allocations Succeeded SpecialPool:      12322
    Pool Allocations With No Tag:                    0
    Pool Allocations Not Tracked:                  817
    Pool Allocations Failed:                         0
    Pool Allocations Failed Deliberately:            0

  Driver Verification List
    MODULE: main.sys (load: 0 / unload: 0)
    MODULE: ndis.sys (load: 1 / unload: 0)
      Pool Allocation Statistics: ( NonPaged / Paged )
        Current Pool Allocations:  (     5029 /      132 )
        Current Pool Bytes:        (  4038335 /    18882 )
        Peak Pool Allocations:     (     5041 /      133 )
        Peak Pool Bytes:           (  4046431 /    19546 )
        Contiguous Memory Bytes:              0
        Peak Contiguous Memory Bytes:         0

    MODULE: netadaptercx.sys (load: 0 / unload: 0)
    MODULE: mbbcx.sys (load: 0 / unload: 0)
    MODULE: wificx.sys (load: 0 / unload: 0)
    MODULE: wdiwifi.sys (load: 0 / unload: 0)

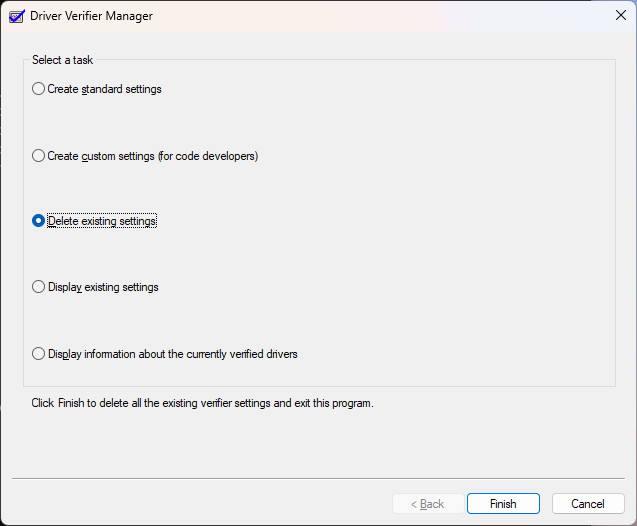

如果要移除Verifier測試項目，只需要選擇Delete即可

P.S. 如果遇到每次開機都會發生BSOD，只要進入安全模式移除測試即可
