驅動程式 - Windows Driver Model (WDM) - 使用範例 - C/C++ (DDK) - Hello, world!

---

參考資訊：
https://wasm.in/
http://four-f.narod.ru/
https://github.com/steward-fu/wadk

main.c

#include <wdm.h>

static PDEVICE_OBJECT pNextDevice = NULL;

static NTSTATUS AddDevice(PDRIVER_OBJECT pMyDriver, PDEVICE_OBJECT pPhyDevice)
{
    PDEVICE_OBJECT pMyDevice = NULL;
    UNICODE_STRING usDeviceName = { 0 };

    DbgPrint("Hello, world!");
    RtlInitUnicodeString(&usDeviceName, L"\\Device\\MyDriver");
    IoCreateDevice(pMyDriver, 0, &usDeviceName, FILE_DEVICE_UNKNOWN, 0, FALSE, &pMyDevice);
    pNextDevice = IoAttachDeviceToDeviceStack(pMyDevice, pPhyDevice);
    pMyDevice->Flags &= ~DO_DEVICE_INITIALIZING;
    pMyDevice->Flags |= DO_BUFFERED_IO;

    return STATUS_SUCCESS;
}

static void Unload(PDRIVER_OBJECT pMyDriver)
{
}

static NTSTATUS IrpDispatch(PDEVICE_OBJECT pMyDevice, PIRP pIrp)
{
    PIO_STACK_LOCATION pStack = IoGetCurrentIrpStackLocation(pIrp);

    if (pStack->MinorFunction == IRP_MN_REMOVE_DEVICE) {
        IoDetachDevice(pNextDevice);
        IoDeleteDevice(pMyDevice);
        IoCompleteRequest(pIrp, IO_NO_INCREMENT);
        return STATUS_SUCCESS;
    }
    IoSkipCurrentIrpStackLocation(pIrp);

    return IoCallDriver(pNextDevice, pIrp);
}

NTSTATUS DriverEntry(PDRIVER_OBJECT pMyDriver, PUNICODE_STRING pMyRegistry)
{
    pMyDriver->MajorFunction[IRP_MJ_PNP] = IrpDispatch;
    pMyDriver->DriverExtension->AddDevice = AddDevice;
    pMyDriver->DriverUnload = Unload;

    return STATUS_SUCCESS;
}

L41~43：只有做Callback設定的動作，需要設定AddDevice、PNP、DriverUnload這三個Callback
L11~15：產生一個Device Object，用來管理新加入的裝置(純軟體虛擬裝置也算)，接著初使化相關旗標
L28~36：主要處理移除Device Object的動作，其餘Irp不處理，直接往下傳遞

main.inf

[Version]
Signature="$WINDOWS NT$"
Class=Unknown
Provider=%MFGNAME%
DriverVer=10/01/2026,1.0.0.0

[Manufacturer]
%MFGNAME%=DeviceList
%MFGNAME%=DeviceList,NTamd64

[DeviceList]
%DESCRIPTION%=DriverInstall.NTamd64,*MyDriver

[DeviceList.NTamd64]
%DESCRIPTION%=DriverInstall.NTamd64,*MyDriver

[DestinationDirs]
DriverCopyFiles=12

[SourceDisksNames]
1=%INSTDISK%

[SourceDisksFiles]
main.sys=1

[DriverInstall.NTamd64]
CopyFiles=DriverCopyFiles

[DriverCopyFiles]
main.sys

[DriverInstall.NTamd64.Services]
AddService=FILEIO,0x00000002,DriverService

[DriverService]
DisplayName=%SERVICE_DESC%
ServiceType=1
StartType=3
ErrorControl=1
ServiceBinary=%12%\main.sys

[DriverInstall.NTamd64.HW]
AddReg=DriverHwAddReg

[DriverHwAddReg]
HKR,,SampleInfo,,""

[Strings]
MFGNAME="MyDriver"
INSTDISK="MyDriver Disc"
DESCRIPTION="MyDriver"
SERVICE_DESC="MyDriver Kernel Driver"

autorun.inf

[autorun]
open=run.bat

run.bat

e:\devcon.exe install e:\main.inf *mydriver
e:\devcon.exe remove e:\main.inf *mydriver

fix.py

import os
import sys
import pefile

if len(sys.argv) != 2:
    print('Usage: {} xxx'.format(sys.argv[0]))
    sys.exit()

fname = sys.argv[1]
pe = pefile.PE(fname);
pe.OPTIONAL_HEADER.CheckSum = pe.generate_checksum();
pe.write(fname);

Makefile

all:
	clang -target i686-pc-windows-msvc -I/opt/wadk/xpddk/inc/wxp -I/opt/wadk/xpddk/inc/ddk/wxp -I/opt/wadk/xpddk/inc/ddk/wdm/wxp -I/opt/wadk/xpddk/inc/crt -D_X86_ -Xclang -fdefault-calling-conv=stdcall -c main.c
	lld-link main.o /driver /base:0x10000 /subsystem:native /entry:DriverEntry /safeseh:no "/opt/wadk/masm32/lib/wxp/i386/ntoskrnl.lib" /out:main.sys
	python3 fix.py main.sys

run:
	genisoimage -R -J -o cdrom.iso autorun.inf main.sys main.inf run.bat /opt/wadk/tools/devcon.exe
	myqemu winxp

clean:
	rm -rf main.sys main.o cdrom.iso

編譯

$ make
$ make run

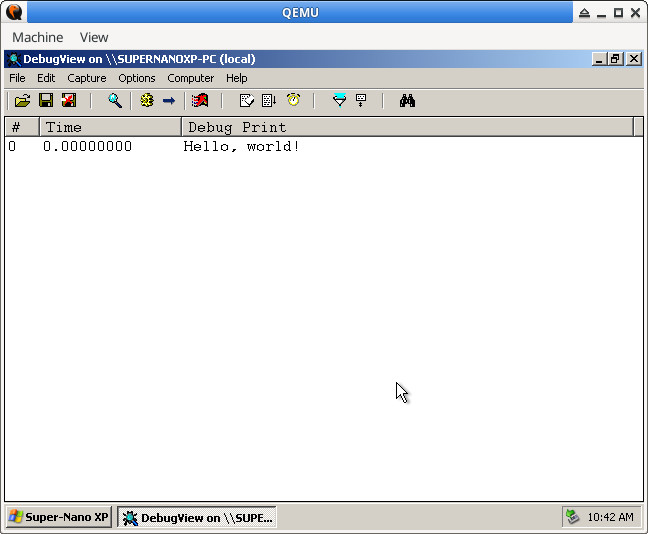

完成


裝置管理員


DeviceObject
