參考資訊：
https://psx.arthus.net/starting.html
https://github.com/ABelliqueux/nolibgs_hello_worlds#installation
main.c
#include <sys/types.h>
#include <stdio.h>
#include <libgte.h>
#include <libetc.h>
#include <libgpu.h>
int main(int argc, char *argv[])
{
const int w = 320;
const int h = 240;
DISPENV disp = { 0 };
DRAWENV draw = { 0 };
ResetGraph(0);
SetDefDispEnv(&disp, 0, 0, w, h);
SetDefDrawEnv(&draw, 0, 0, w, h);
SetDispMask(1);
setRGB0(&draw, 0, 0, 0);
draw.isbg = 1;
PutDispEnv(&disp);
PutDrawEnv(&draw);
FntLoad(640, 0);
FntOpen(100, 100, w, h, 0, 255);
while (1) {
FntPrint("Hello, world!");
FntFlush(-1);
DrawSync(0);
VSync(0);
}
return 0;
}
psexe.ld
/*
MIT License
Copyright (c) 2019 PCSX-Redux authors
Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all
copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
*/
OUTPUT_FORMAT("binary")
EXTERN(_start)
ENTRY(_start)
TLOAD_ADDR = DEFINED(TLOAD_ADDR) ? TLOAD_ADDR : 0x80010000;
MEMORY {
loader : ORIGIN = (TLOAD_ADDR - 0x800), LENGTH = 2048
ram (rwx) : ORIGIN = 0x80010000, LENGTH = 2M - 0x10000
dcache : ORIGIN = 0x1f800000, LENGTH = 0x400
}
__heap_base = __bss_end;
__ram_top = ORIGIN(ram) + LENGTH(ram);
__sp = __ram_top - 0x100;
__dcache = ORIGIN(dcache);
__dcache_top = ORIGIN(dcache) + LENGTH(dcache);
__bss_len = (__bss_end - __bss_start);
__ftext_len = (__ftext_end - __ftext_start);
__fdata_len = (__fdata_end - __fdata_start);
__stack_start = ORIGIN(ram) + LENGTH(ram);
SECTIONS {
.PSX_EXE_Header : {
/*
0x0000 - 0x0007 : "PS-X EXE"
*/
BYTE(80); BYTE(83); BYTE(45); BYTE(88); BYTE(32); BYTE(69); BYTE(88); BYTE(69);
/* 0x0008 - 0x000F : skip text_off and data_off since they're not supported by the PS1 BIOS */
LONG(0); LONG(0);
/* 0x0010 - 0x0013 : entry point */
LONG(ABSOLUTE(_start));
/* 0x0014 - 0x0017 : initial value of $gp */
LONG(0);
/* 0x0018 - 0x001B : Memory address to load "text" section to. */
/*
NOTE: The "text" section is actually all of the "load"
sections of the file including .text, .rodata, .data.
etc.
*/
LONG(TLOAD_ADDR);
/* 0x001C - 0x001F : size, in bytes, of the "text" section. */
LONG(__ftext_len + __fdata_len);
/* 0x0020 - 0x002F :
Skip "data_addr", "data_size", "bss_addr" and "bss_size".
None of these are supported by retail PS1 BIOS.
*/
LONG(0); LONG(0);
LONG(0); LONG(0);
/* 0x0030 - 0x0033 : Initial stack address. */
LONG(DEFINED(_sp) ? ABSOLUTE(_sp) : 0x801FFF00);
/* 0x0034 - 0x0037 : Initial stack size, set it to 0. */
LONG(0);
/* Skip the remaining fields as they're not supported by the BIOS */
/* e.g. 2048 header bytes minus whatever we've actually used */
. = . + 1992;
} > loader
__ftext_start = ABSOLUTE(.);
.text TLOAD_ADDR : {
*(.start)
*(.init)
KEEP (*(SORT_NONE(.fini)))
*(.text.unlikely .text.*_unlikely .text.unlikely.*)
*(.text.exit .text.exit.*)
*(.text.startup .text.startup.*)
*(.text.hot .text.hot.*)
*(.text .stub .text.* .gnu.linkonce.t.*)
. = ALIGN(16);
KEEP(*(.init))
. = ALIGN(16);
KEEP(*(.fini))
} > ram
. = ALIGN(16);
__text_end = .;
__ftext_end = ABSOLUTE(.);
__fdata_start = ABSOLUTE(.);
.rodata : {
*(.rodata .rodata.* .rdata .rdata.* .gnu.linkonce.r.*)
. = ALIGN(16);
__preinit_array_start = .;
KEEP (*(.preinit_array))
__preinit_array_end = .;
. = ALIGN(16);
__init_array_start = .;
KEEP (*(SORT(.init_array.*)))
KEEP (*(.init_array))
. = ALIGN(16);
KEEP (*crtbegin.o(.ctors))
KEEP (*(EXCLUDE_FILE (*crtend.o) .ctors))
KEEP (*(SORT(.ctors.*)))
KEEP (*crtend.o(.ctors))
__init_array_end = .;
. = ALIGN(16);
__fini_array_start = .;
KEEP (*(.fini_array))
KEEP (*(SORT(.fini_array.*)))
KEEP (*crtbegin.o(.dtors))
KEEP (*(EXCLUDE_FILE (*crtend.o) .dtors))
KEEP (*(SORT(.dtors.*)))
KEEP (*crtend.o(.dtors))
__fini_array_end = .;
__build_id = .;
*(.note.gnu.build-id)
__build_id_end = .;
} > ram
.rodata1 : {
*(.rodata1)
} > ram
__data_start = .;
.data : {
*(.a0table)
*(.data .data.* .gnu.linkonce.d.*)
*(.data1)
*(.sdata .sdata.* .gnu.linkonce.s.*)
*(.sdata2 .sdata2.* .gnu.linkonce.s2.*)
*(.got.plt)
*(.got)
/* pad file to be a multiple of 2048 bytes. Needed for loading from CD-ROM. */
. = ALIGN(2048);
} > ram
__data_end = .;
__fdata_end = .;
__bss_start = .;
.sbss (NOLOAD) : {
*(.dynsbss)
*(.sbss .sbss.* .gnu.linkonce.sb.*)
*(.scommon)
*(.dynbss)
*(.bss .bss.* .gnu.linkonce.b.*)
*(COMMON)
} > ram
. = ALIGN(4);
__bss_end = .;
__heap_start = __heap_base;
. = ADDR(.text) - 0x800;
__end = .;
/DISCARD/ : { *(.MIPS.abiflags) }
/* Everything is statically linked, so discard PLTs. */
/DISCARD/ : { *(.rel.iplt) *(.rela.iplt) *(.rel.plt) *(.rela.plt) *(.plt) *(.iplt) }
/* Discard things that the standard link script drops, too. */
/DISCARD/ : { *(.note.GNU-stack) *(.gnu_debuglink) *(.gnu.lto_*) }
}
Makefile
TARGET = main CROSS = mipsel-linux-gnu- CFLAGS += -I/opt/nugget/psyq/include CFLAGS += -I/opt/psyq/include CFLAGS += -march=mips1 CFLAGS += -mabi=32 CFLAGS += -EL CFLAGS += -fno-builtin CFLAGS += -fno-pic CFLAGS += -mno-shared CFLAGS += -mno-abicalls CFLAGS += -mfp32 CFLAGS += -nostdlib LDFLAGS += /opt/nugget/common/crt0/crt0.o LDFLAGS += /opt/nugget/common/syscalls/printf.o LDFLAGS += -static LDFLAGS += -L/opt/psyq/lib LDFLAGS += -Wl,--start-group LDFLAGS += -lapi LDFLAGS += -lc LDFLAGS += -lc2 LDFLAGS += -lcard LDFLAGS += -lcomb LDFLAGS += -lds LDFLAGS += -letc LDFLAGS += -lgpu LDFLAGS += -lgs LDFLAGS += -lgte LDFLAGS += -lgun LDFLAGS += -lhmd LDFLAGS += -lmath LDFLAGS += -lmcrd LDFLAGS += -lmcx LDFLAGS += -lpad LDFLAGS += -lpress LDFLAGS += -lsio LDFLAGS += -lsnd LDFLAGS += -lspu LDFLAGS += -ltap LDFLAGS += -lcd LDFLAGS += -Wl,--end-group LDFLAGS += -Wl,--oformat=elf32-tradlittlemips LDFLAGS += -Tpsexe.ld all: $(CROSS)gcc $(CFLAGS) main.c -c -o $(TARGET).o $(CROSS)gcc $(CFLAGS) $(TARGET).o -o $(TARGET).elf $(LDFLAGS) $(CROSS)objcopy -O binary $(TARGET).elf $(TARGET).exe run: /opt/ps1/pcsx $(TARGET).exe clean: rm -rf $(TARGET).elf $(TARGET).exe $(TARGET).o

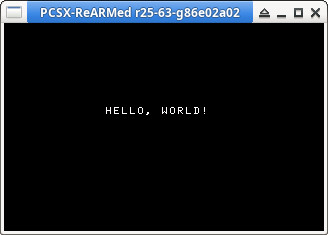

編譯、執行
$ make $ make run
