程式語言 - uC/GUI - 顯示中文字型



參考資訊:
https://www.cnblogs.com/armfly/p/15194282.html
http://dz.lfly.xyz/forum.php?mod=viewthread&tid=5

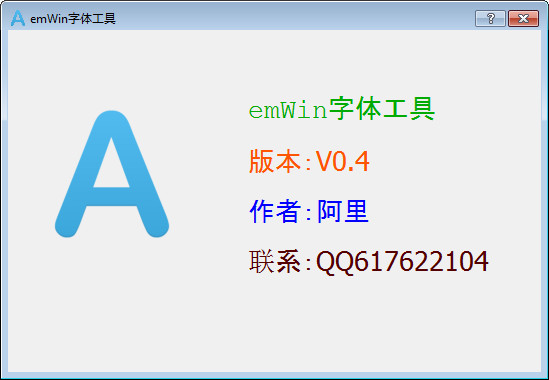

感謝阿里的工具

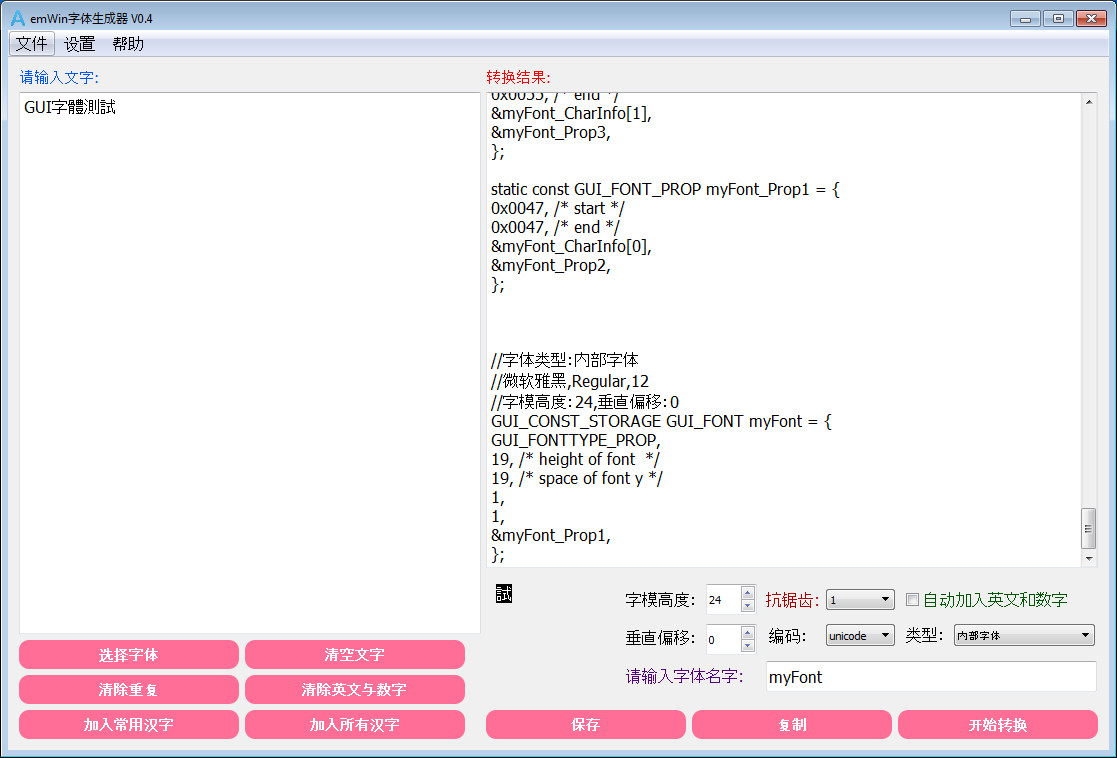

輸入要轉換的文字,記得選擇unicode


main.c

#include "GUI.h"

/*
*---------------------------------------------------------------
*                        emWin字体工具
*
* 注:支持unicode/GBK编码切换,支持抗锯齿
* 注:本字体文件由emWin字体工具 V0.4 生成
* 作者:阿里(qq:617622104)
*---------------------------------------------------------------
*/


#include "GUI.h"


/* G */
static const unsigned char myFont_0047[] = {
0x00,0x00,  //...........
0x00,0x00,  //...........
0x00,0x00,  //...........
0x00,0x00,  //...........
0x1f,0x80,  //...@@@@@@..
0x60,0x40,  //.@@......@.
0x40,0x00,  //.@.........
0x80,0x00,  //@..........
0x80,0x00,  //@..........
0x80,0x00,  //@..........
0x87,0xc0,  //@....@@@@@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x40,0x40,  //.@.......@.
0x60,0x40,  //.@@......@.
0x1f,0x80,  //...@@@@@@..
0x00,0x00,  //...........
0x00,0x00,  //...........
0x00,0x00,  //...........
};

/* U */
static const unsigned char myFont_0055[] = {
0x00,0x00,  //...........
0x00,0x00,  //...........
0x00,0x00,  //...........
0x00,0x00,  //...........
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x80,0x40,  //@........@.
0x40,0x80,  //.@......@..
0x3f,0x00,  //..@@@@@@...
0x00,0x00,  //...........
0x00,0x00,  //...........
0x00,0x00,  //...........
};

/* I */
static const unsigned char myFont_0049[] = {
0x00,  //......
0x00,  //......
0x00,  //......
0x00,  //......
0x70,  //.@@@..
0x20,  //..@...
0x20,  //..@...
0x20,  //..@...
0x20,  //..@...
0x20,  //..@...
0x20,  //..@...
0x20,  //..@...
0x20,  //..@...
0x20,  //..@...
0x20,  //..@...
0x70,  //.@@@..
0x00,  //......
0x00,  //......
0x00,  //......
};

/* 字 */
static const unsigned char myFont_5b57[] = {
0x00,0x00,  //................
0x00,0x00,  //................
0x01,0x00,  //.......@........
0x01,0x00,  //.......@........
0xff,0xfe,  //@@@@@@@@@@@@@@@.
0x80,0x02,  //@.............@.
0x80,0x02,  //@.............@.
0x1f,0xf0,  //...@@@@@@@@@....
0x00,0x20,  //..........@.....
0x00,0x40,  //.........@......
0x01,0x80,  //.......@@.......
0x01,0x00,  //.......@........
0xff,0xfe,  //@@@@@@@@@@@@@@@.
0x01,0x00,  //.......@........
0x01,0x00,  //.......@........
0x01,0x00,  //.......@........
0x07,0x00,  //.....@@@........
0x00,0x00,  //................
0x00,0x00,  //................
};

/* 體 */
static const unsigned char myFont_9ad4[] = {
0x00,0x00,  //................
0x00,0x00,  //................
0x00,0x28,  //..........@.@...
0x7c,0xfe,  //.@@@@@..@@@@@@@.
0x44,0xaa,  //.@...@..@.@.@.@.
0x5c,0xfe,  //.@.@@@..@@@@@@@.
0x54,0xaa,  //.@.@.@..@.@.@.@.
0xfe,0xfe,  //@@@@@@@.@@@@@@@.
0x82,0x00,  //@.....@.........
0x7c,0xfe,  //.@@@@@..@@@@@@@.
0x44,0x00,  //.@...@..........
0x7c,0xfe,  //.@@@@@..@@@@@@@.
0x44,0x82,  //.@...@..@.....@.
0x7c,0xfe,  //.@@@@@..@@@@@@@.
0x44,0x44,  //.@...@...@...@..
0x44,0x28,  //.@...@....@.@...
0x4c,0xfe,  //.@..@@..@@@@@@@.
0x00,0x00,  //................
0x00,0x00,  //................
};

/* 測 */
static const unsigned char myFont_6e2c[] = {
0x00,0x00,  //................
0x00,0x00,  //................
0x40,0x02,  //.@............@.
0x27,0x92,  //..@..@@@@..@..@.
0x14,0x92,  //...@.@..@..@..@.
0x04,0x92,  //.....@..@..@..@.
0x87,0x92,  //@....@@@@..@..@.
0x44,0x92,  //.@...@..@..@..@.
0x24,0x92,  //..@..@..@..@..@.
0x07,0x92,  //.....@@@@..@..@.
0x04,0x92,  //.....@..@..@..@.
0x24,0x92,  //..@..@..@..@..@.
0x24,0x92,  //..@..@..@..@..@.
0x47,0x82,  //.@...@@@@.....@.
0x40,0x02,  //.@............@.
0x84,0x82,  //@....@..@.....@.
0x88,0x4e,  //@...@....@..@@@.
0x00,0x00,  //................
0x00,0x00,  //................
};

/* 試 */
static const unsigned char myFont_8a66[] = {
0x00,0x00,  //................
0x00,0x00,  //................
0x00,0x10,  //...........@....
0x78,0x14,  //.@@@@......@.@..
0x00,0x12,  //...........@..@.
0xfc,0x10,  //@@@@@@.....@....
0x03,0xfe,  //......@@@@@@@@@.
0x78,0x10,  //.@@@@......@....
0x00,0x10,  //...........@....
0x79,0xd0,  //.@@@@..@@@.@....
0x00,0x90,  //........@..@....
0x00,0x88,  //........@...@...
0x78,0x88,  //.@@@@...@...@...
0x48,0x8a,  //.@..@...@...@.@.
0x48,0xea,  //.@..@...@@@.@.@.
0x4b,0x86,  //.@..@.@@@....@@.
0x78,0x02,  //.@@@@.........@.
0x00,0x00,  //................
0x00,0x00,  //................
};



static const GUI_CHARINFO myFont_CharInfo[] = {
{11,11,2,myFont_0047 },  /* 0:G */
{11,11,2,myFont_0055 },  /* 1:U */
{6,6,1,myFont_0049 },  /* 2:I */
{16,16,2,myFont_5b57 },  /* 3:字 */
{16,16,2,myFont_9ad4 },  /* 4:體 */
{16,16,2,myFont_6e2c },  /* 5:測 */
{16,16,2,myFont_8a66 },  /* 6:試 */
};


static const GUI_FONT_PROP myFont_Prop7 = {
0x8a66, /* start */
0x8a66, /* end */
&myFont_CharInfo[6],
(void*)0,
};

static const GUI_FONT_PROP myFont_Prop6 = {
0x6e2c, /* start */
0x6e2c, /* end */
&myFont_CharInfo[5],
&myFont_Prop7,
};

static const GUI_FONT_PROP myFont_Prop5 = {
0x9ad4, /* start */
0x9ad4, /* end */
&myFont_CharInfo[4],
&myFont_Prop6,
};

static const GUI_FONT_PROP myFont_Prop4 = {
0x5b57, /* start */
0x5b57, /* end */
&myFont_CharInfo[3],
&myFont_Prop5,
};

static const GUI_FONT_PROP myFont_Prop3 = {
0x0049, /* start */
0x0049, /* end */
&myFont_CharInfo[2],
&myFont_Prop4,
};

static const GUI_FONT_PROP myFont_Prop2 = {
0x0055, /* start */
0x0055, /* end */
&myFont_CharInfo[1],
&myFont_Prop3,
};

static const GUI_FONT_PROP myFont_Prop1 = {
0x0047, /* start */
0x0047, /* end */
&myFont_CharInfo[0],
&myFont_Prop2,
};

//字体类型:内部字体
//微软雅黑,Regular,12
//字模高度:24,垂直偏移:0
GUI_CONST_STORAGE GUI_FONT myFont = {
GUI_FONTTYPE_PROP,
19, /* height of font  */
19, /* space of font y */
1,
1,
&myFont_Prop1,
};

int main(int argc, char *argv[])
{
    GUI_Init();
    GUI_SetColor(GUI_WHITE);

    GUI_UC_SetEncodeUTF8();
    GUI_SetFont(&myFont);
    GUI_DispString("GUI字體測試");

    GUI_Delay(3000);
    return 0;
}

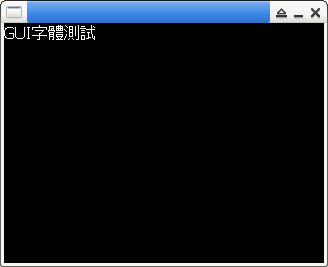

編譯、執行

$ gcc main.c -o main libucgui.a -IGUI_X -IGUI/Core -IGUI/Widget -IGUI/WM -lSDL
$ ./main
